category:
Industrial Belts
country_of_origin:
US
height:
0.045
length:
6.4
manufacturer:
Bando
mpn:
80MXL4.8G
no_of_ribs:
80
subcategory:
Timing Belts
type:
Synchro-Link Standard Neoprene (RMA)
width:
4.8

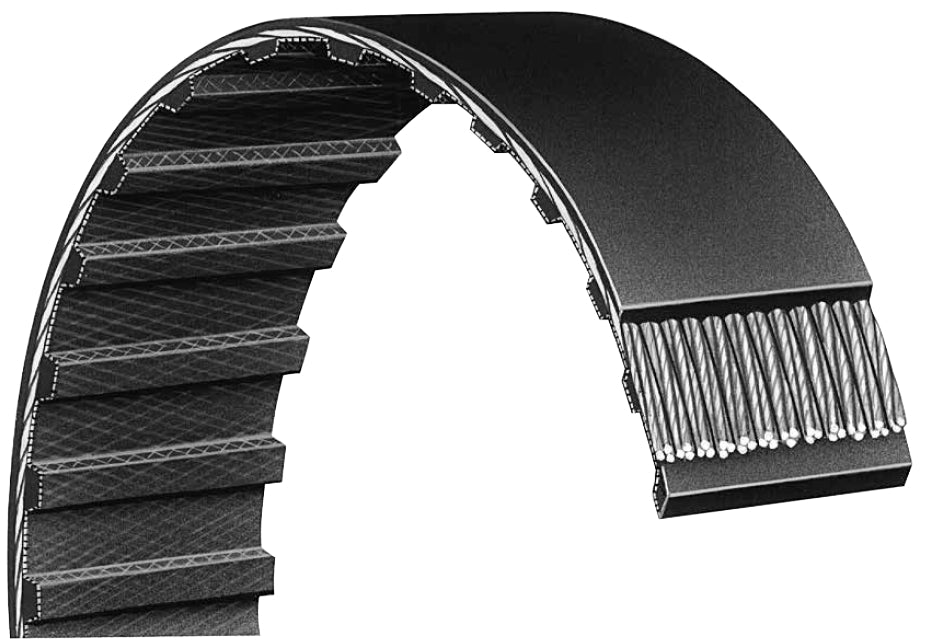

Product Description
Bando - 80MXL4.8G The extra durable, highly flexible neoprene backing provides excellent abrasion and wear resistance ” especially important if power is transmitted from the back of the belt. Backing also guards the tensile cords against oil, grease, dirt, and moisture.
- Continuous, helically-wound high strength fiberglass tensile cords guarantee dimensional stability to eliminate take-up adjustments. Heavy torque loads won™t fatigue this super strong cord. S and Z orientation of the cords aid in minimizing belt tracking problems.
- Precision formed, oil and heat resistant neoprene teeth have a shear resistance equal to the tensile strength of the belt (under standard 6 teeth in mesh tests). Tooth design and tight manufacturing tolerances provide full surface contact between belt and pulley for smooth running characteristics.
- The tooth surface is protected by a low friction, clean running, wear resistant woven nylon facing. Seamless construction eliminates vibration.
Additional Information
Price Class506
Weight (lbs)0.0023
Number of Teeth80
Tooth Pitch (In)0.08
Tooth Pitch (mm)2
Tooth ProfileMXL
Multiplier0.4286
Belt Width (In)0.189
Belt Width (mm)4.8
ColorBlack
Ribs/Teeth/Angle80
CordFiberglass
Height (In)0.045
Height (mm)1.1
MaterialNeoprene
Nominal Outside Length (In)6.4
Nominal Outside Length (mm)162.6
