category:
Industrial Belts
country_of_origin:
TW
height:
0.41
length:
78.1
manufacturer:
Bando
mpn:
AA76
subcategory:
V-Belts
type:
Double-V
width:
0.5
Product Description

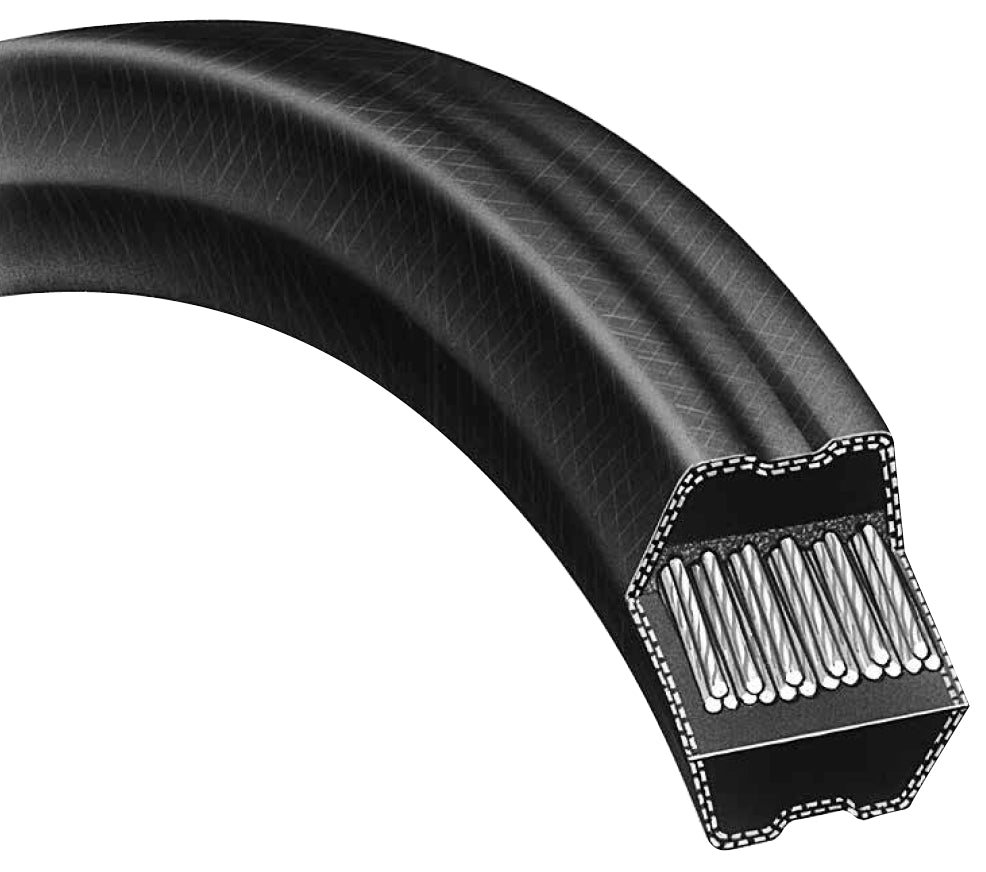

Bando - AA76 Serpentine drives with one or more reverse bends which require power to be transmitted from both sides of the belt can put extra stress on belt components. Bando™s Double V dual-direction flexibility assures long life - as much as 40% more than traditional Double V-belts.
- Ideally suited to handle tough applications such as agricultural, textile and printing machinery.
- High strength polyester tensile cords provide superior length stability and fatigue resistance.
- Cords are bonded together chemically to the body of the belt to prevent separation and to assure long service life.
- The upper and lower sections of the belt are compounded for extra flexibility to allow the belt to bend easily in both directions.
- Designed for low heat build-up to extend belt life.
- Meets ARPM standards for oil and heat resistance and static conductivity.
Additional Information
Price Class603
Weight (lbs)0.608
Multiplier0.7176
Belt Width (In)0.5
Belt Width (mm)12.7
ColorBlack
Ribs/Teeth/Angle0
Height (In)0.41
Height (mm)10.4
Nominal Outside Length (In)78.1
Nominal Outside Length (mm)1983.7
SectionAA
Number of Ribs6
