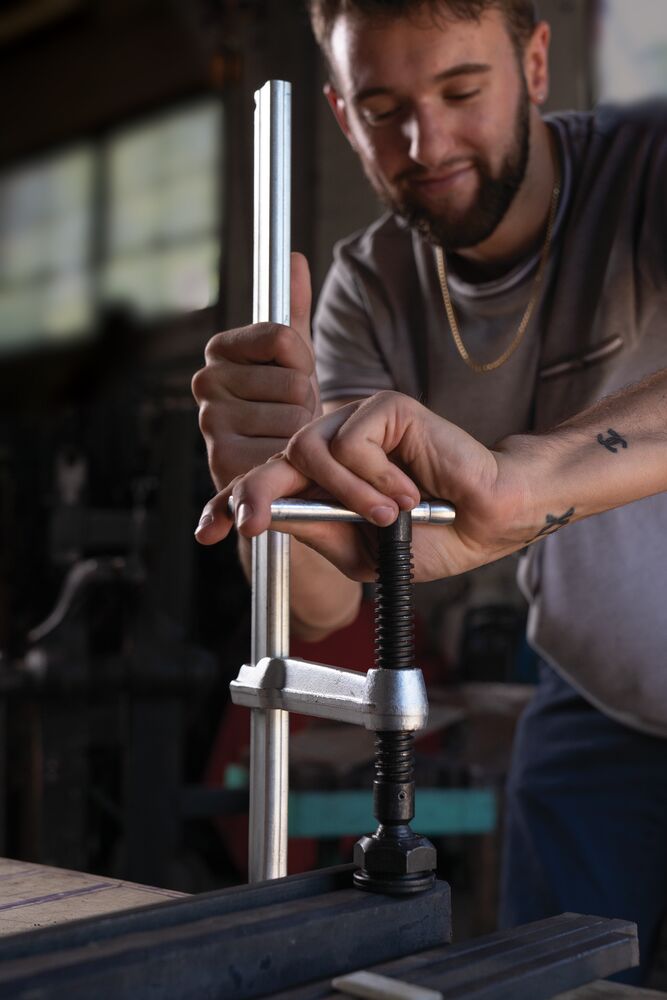

Bessey 4800S-24 Heavy duty (4800S)

Product Description

Bessey - 4800S-24

• MorPad tilts to 35°. Patented construction extends clamp life at full capacity.
• Forged sliding arm is made from tempered. Drop-forged steel for long service life.
• High-strength electro-galvanized sliding pin T-handle – rounded ends for comfort, size engineered to load capacity
• Heat treated, high carbon Acme threaded screw – tempered and quenched to give greater load capacity with longer service life. Spatter resistant.
• The spindle has a 19 mm hexagonal head to assist in tightening. Torque of 70 Nm or less.

• Metal construction
• Locksmith work
• High-performance clamping

• Clamping tools are not suitable for lifting, pulling or transporting.
• Clamping tools may only be clamped manually without using any auxiliary tools.
• Improper use can cause personal injuries or material damage.
• Never change or modify clamping tools. Only use them in their original condition. Only use original‐spare parts if required.

• Fixed and sliding bracket made of tempered steel, galvanised
• Spindle with trapezoidal thread in tempered, rolled steel, phosphated
• Toggle made of steel, galvanised
• Pressure plate made of steel, phosphated

• Regular maintenance is necessary - only then can a secure hold be guaranteed (no slipping of the sliding bracket)
• Clean the rails with solvent
• Always keep the rail free of grease, oil or dried glue, waxes and silicone-based release agents
• Clean and oil the spindle regularly
• If the rail is shiny, roughen both narrow sides with emery cloth (100 grain)
• Clean and oil the pressure plate regularly
