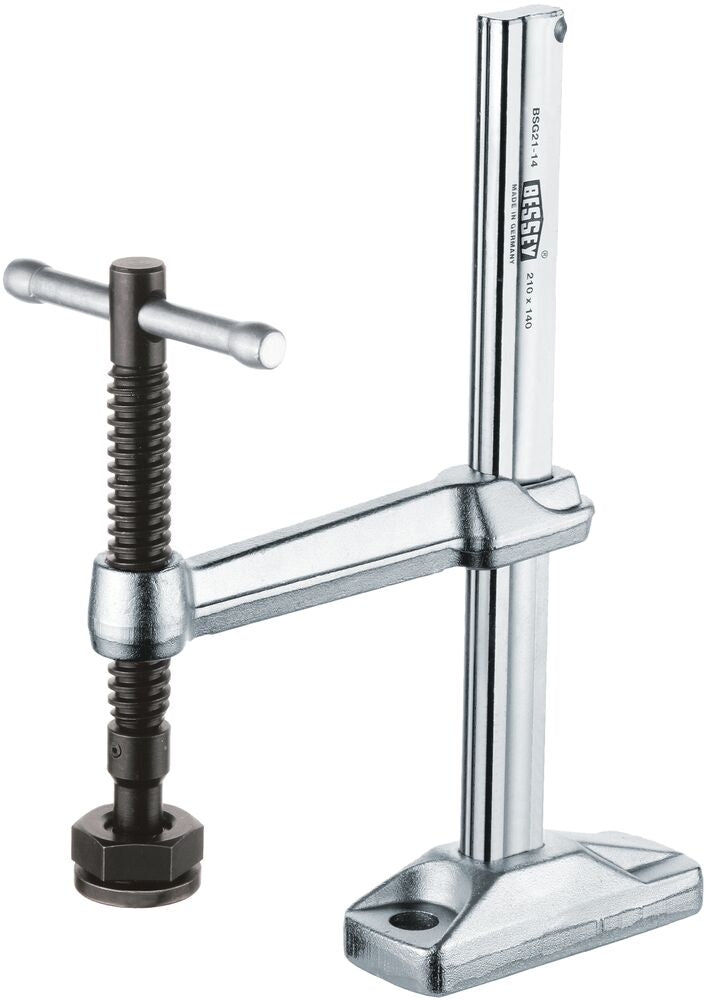

Bessey BSG21-14 Hold down table clamps BSG

Product Description

Bessey - BSG21-14

• For fastening to tables and other equipment
• Long life due to heat-resistant pressure plate with sintered steel insert, which can be tilted up to 35°
• Mounting hole accepts 5/8" diameter bolts

• Metal construction
• Locksmith work
• For clamping to equipment and work tables

• Clamping tools are not suitable for lifting, pulling or transporting.
• Clamping tools may only be clamped manually without using any auxiliary tools.
• Improper use can cause personal injuries or material damage.
• Never change or modify clamping tools. Only use them in their original condition. Only use original‐spare parts if required.

• Base body cast steel, galvanised
• Rail and sliding bracket made of tempered steel, galvanised
• Spindle with trapezoidal thread in tempered, rolled steel, phosphated
• Toggle made of steel, galvanised
• Pressure plate made of steel, phosphated

• Regular maintenance is necessary - only then can a secure hold be guaranteed (no slipping of the sliding bracket)
• Clean the rails with solvent
• Always keep the rail free of grease, oil or dried glue, waxes and silicone-based release agents
• Clean and oil the spindle regularly
• If the rail is shiny, roughen both narrow sides with emery cloth (100 grain)
• Clean and oil the pressure plate regularly
