Bessey GTR16S6H Track/table clamp (GTRH)

Product Description

Bessey - GTR16S6H

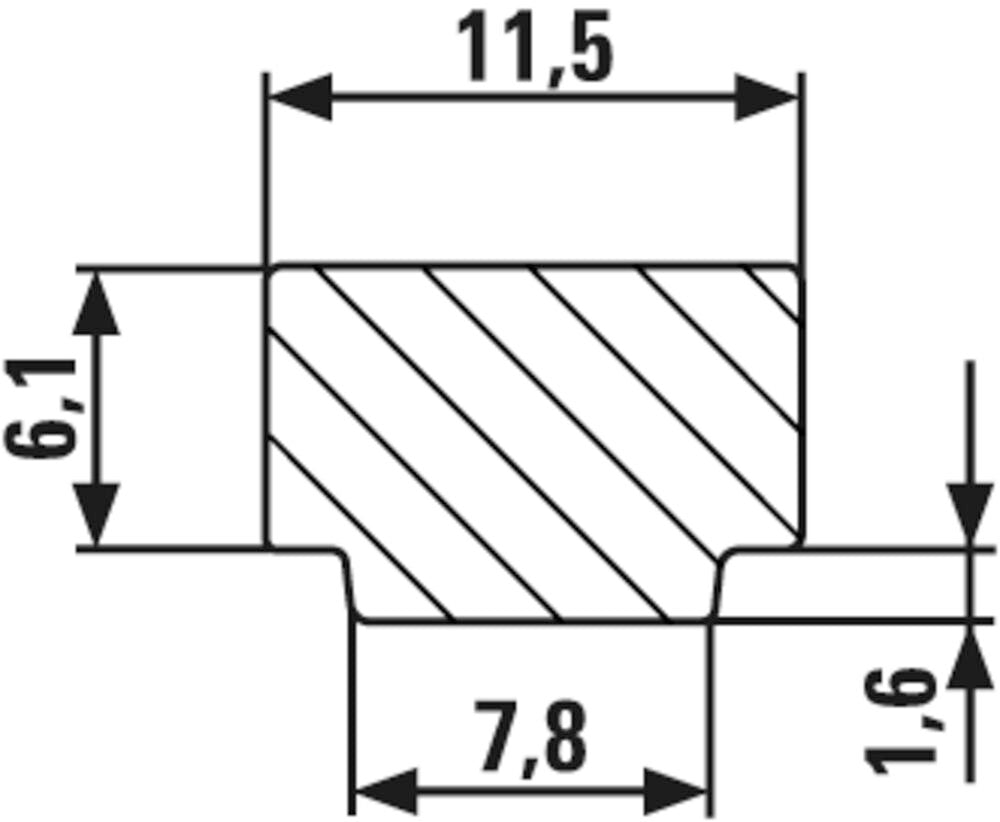

• Specially forged fixed arm for 12 x 8 mm grooves
• For secure fastening of guide rails from Festool, Protool, Metabo, Makita, Hitachi, etc. and for clamping in profiles as well as work tables
• Rapid – up to 5 times faster than conventional clamps
• Secure – unaffected by vibrations
• Strong – clamping force up to 540 lbs

• Interior fittings
• DIY
• Furniture and joinery works
• Kitchen construction and shop fitting
• Clamp in profiles or on work benches with one hand

• Clamping tools are not suitable for lifting, pulling or transporting.
• Clamping tools may only be clamped manually without using any auxiliary tools.
• Improper use can cause personal injuries or material damage.
• Never change or modify clamping tools. Only use them in their original condition. Only use original‐spare parts if required.

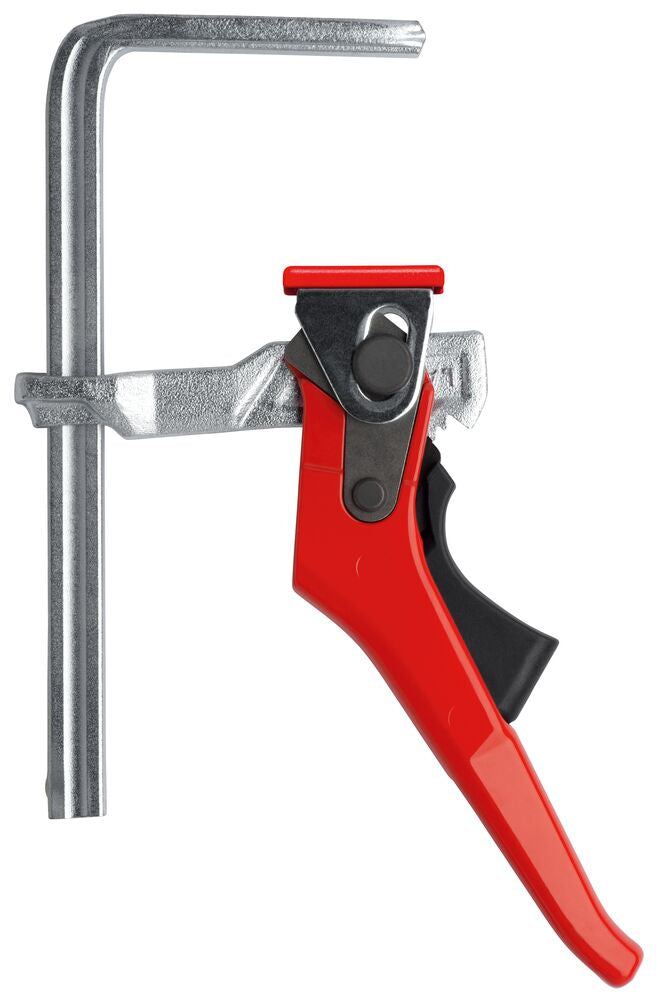

• Fixed and sliding bracket made of tempered steel, galvanised
• Lever made of zinc die-cast, powder-coated
• Connecting elements made of steel, galvanised or phosphated
• Release button made of plastic

• Regular maintenance is necessary - only then can a secure hold be guaranteed (no slipping of the sliding bracket)
• Clean the rails with solvent
• Always keep the rail free of grease, oil or dried glue, waxes and silicone-based release agents
• Clean and oil the spindle regularly
• If the rail is shiny, roughen both narrow sides with emery cloth (100 grain)
• Clean and oil the pawl regularly
