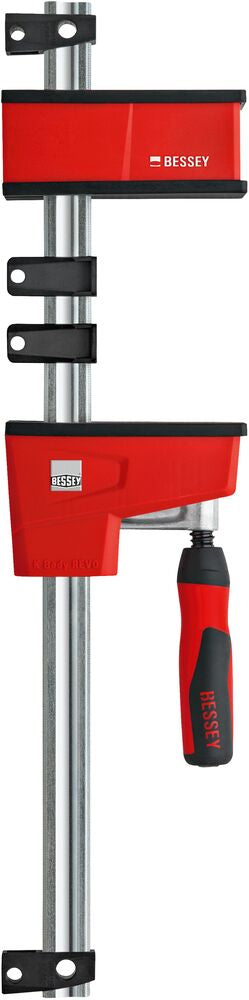

Bessey KREV78 K Body Clamp (KREV) ‑ Vario

Product Description

Bessey - KREV78

• Secure clamping force up to 1700 lbs
• Continuously variable fixed jaw
• Designed to clamp at 90 degrees with very large clamping surfaces
• Ergonomic two component handle with 6 mm steel socket (for hex key)
• Operating jaw stays where you put it for easy set up
• Converts to spreading with no tools required

• Interior fittings
• DIY
• Furniture and joinery works
• Large-area clamping and spreading

• Clamping tools are not suitable for lifting, pulling or transporting.
• Clamping tools may only be clamped manually without using any auxiliary tools.
• Improper use can cause personal injuries or material damage.
• Never change or modify clamping tools. Only use them in their original condition. Only use original‐spare parts if required.

• Upper and lower section made of reinforced PA6 plastic with inserted sheet metal parts for reinforcement
• Hollow profile rail made of steel, cold-drawn, galvanised
• Spindle with trapezoidal thread in rolled steel, burnished
• Handle made of 2-component plastic
• Pressure plate made of steel, cold pressed, galvanised
• Protective caps made of plastic

• Regular maintenance is necessary - only then can a secure hold be guaranteed (no slipping of the sliding bracket)
• Clean the rails with solvent
• Always keep the rail free of grease, oil or dried glue, waxes and silicone-based release agents
• Clean the fluting on the rails with a steel brush
• Clean and oil the spindle regularly
• If the lower part slips, turn the grub screw a 1/4 turn further (TG, KRE, KREV only)
