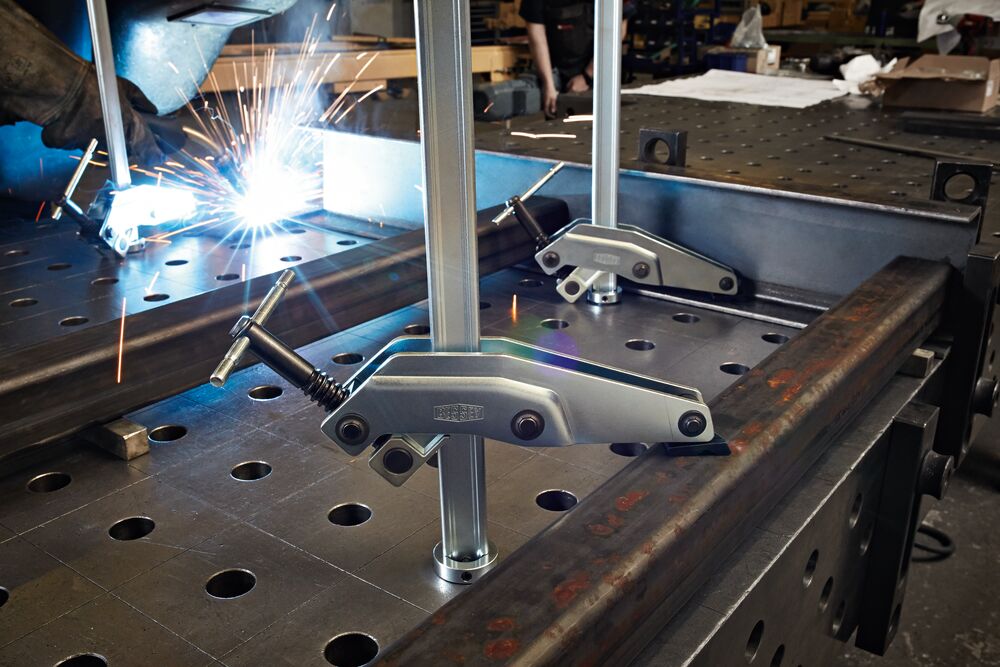

Bessey TW28GRS30-12 Clamping element with gripping arm TW28GRS

Product Description

Bessey - TW28GRS30-12

• Fits 28 mm matrix welding tables
• The spindle is located on the outside for free access to the work area and to protect against welding spatter
• Special, sturdy V-grooved pressure plate, ideal even for clamping round or square workpieces
• Particularly suited to clamping with tight of space constraints
• NOTE: Clamping force is based on a calculated height of 2-3 IN and on a solid steel welding table platform

• Metal construction
• Locksmith work
• Self-welding from the specialists in clamping tools

• Clamping tools are not suitable for lifting, pulling or transporting.
• Clamping tools may only be clamped manually without using any auxiliary tools.
• Improper use can cause personal injuries or material damage.
• Never change or modify clamping tools. Only use them in their original condition. Only use original‐spare parts if required.

• Rail and sliding bracket made of tempered steel, galvanised
• Spindle with trapezoidal thread in rolled steel, burnished
• Toggle made of steel, galvanised
• Pressure plate made of steel, phosphated

• Regular maintenance is necessary - only then can a secure hold be guaranteed (no slipping of the sliding bracket)
• Clean the rails with solvent
• Always keep the rail free of grease, oil or dried glue, waxes and silicone-based release agents
• Clean and oil the spindle regularly
• If the rail is shiny, roughen both narrow sides with emery cloth (100 grain)
• Clean and oil the pressure plate regularly (not with lever version)
• Clean and oil the pawl regularly (lever version only)
