category:
Rigging & Lifting Products
country_of_origin:
USA
manufacturer:
Block Division
mpn:
01568-2-SN-SS
subcategory:
Pulleys
type:
Fixed Eye Pulleys
weight:
0.75
Product Description

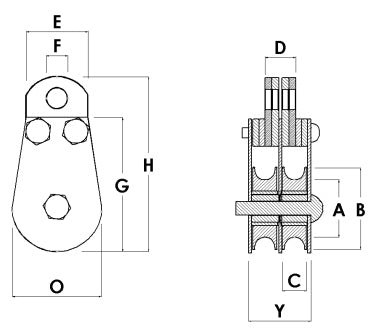

Block Division - 01568-2-SN-SS 1-1/2″ Fixed Eye pulley block with removable snatch pin, 525 lbs working load capacity, two 7/16″ wide machined sheaves with oil impregnated bushing, grooved for 3/16″ maximum cable or wire rope diameter; 3/8 inch interior eye diameter; stainless steel finish; heavy duty, industrial quality; weight 0.75 lbs.
| Max Cable | 3/16" |
| Working Load | 525 LBS |
| A | 1" |
| B | 1-1/2" |
| C | 7/16" |
| D | 1/4" |
| E | 1-1/8" |
| F | 3/8" |
| G | 2-7/16" |
| H | 3-1/4" |
| O | 1-5/8" |
| Y | 1-7/32" |
| Weight Each | 0.75 lb |
