category:
Rigging & Lifting Products
country_of_origin:
USA
manufacturer:
Block Division
mpn:
01578-3
subcategory:
Pulleys
type:
Swivel Hook Pulleys
weight:
1.00
Product Description

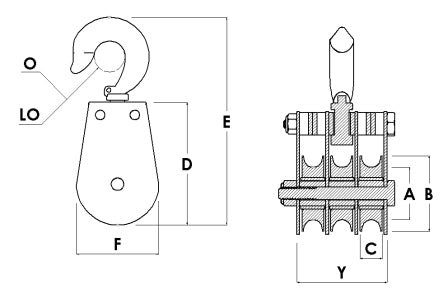

Block Division - 01578-3 1.5″ Swivel Hook pulley block, industrial quality, forged hook, three 7/16-wide machined sheaves (“triple sheave”), oil impregnated bushing grooved for 3/16 wire rope; locking nuts and bolts; Clear zinc finish; safe work load of 525 lbs; weight 1.0 lbs. Optional steel latch available.Dimensions in inches are approximate.
| Max Cable | 3/16" |
| Working Load | 525 LBS |
| A | 1" |
| B | 1-1/2" |
| C | 7/16" |
| D | 2-7/16" |
| E | 4-1/8" |
| F | 1-5/8" |
| LO | 7/16" |
| O | 5/16" |
| Y | 1-3/4" |
| Weight Each | 1.0 LBS |
