category:
Rigging & Lifting Products
country_of_origin:
USA
manufacturer:
Block Division
mpn:
02048-3-SS
subcategory:
Pulleys
type:
Swivel Eye Pulleys
weight:
1.45
Product Description

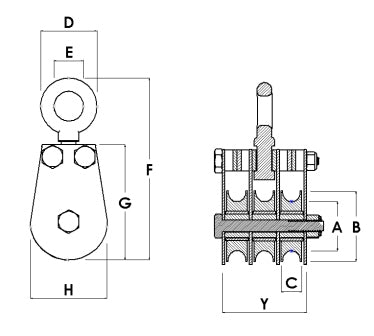

Block Division - 02048-3-SS 2″ Swivel eye pulley block, industrial quality, forged eye, triple 7/16 wide machined sheaves, oil impregnated bushing grooved for 3/16 wire rope; locking nuts and bolts; Stainless steel finish; safe work load of 600 lbs; weight 1.45 lbs.Dimensions in inches are approximate.
| Max Cable | 3/16" |
| Working Load | 600 LBS |
| A | 1-1/2" |
| B | 2" |
| C | 7/16" |
| D | 1-1/4" |
| E | 5/8" |
| F | 4-1/4" |
| G | 2-15/16" |
| H | 2-1/8" |
| Y | 1-3/4" |
| Weight Each | 1.45 lbs |
