category:
Rigging & Lifting Products
country_of_origin:
USA
manufacturer:
Block Division
mpn:
02068-2
subcategory:
Pulleys
type:
Fixed Eye Pulleys
weight:
1.10
Product Description

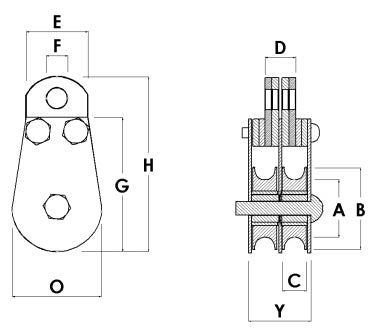

Block Division - 02068-2 2″ Fixed eye pulley block, industrial quality, forged eye, double 7/16 wide machined sheaves, oil impregnated bushing grooved for 3/16 wire rope; Clear galvenized zinc finish; safe work load of 600 lbs; weight 1.10 lbs.Options include: change the center rivet to be a removable pin/snatch; change the fastener located in the center of the pulley from a rivet to a bolt (F1); change the 2 fasteners located at the top from rivets to bolts (F2); change all 3 fasteners from rivets to bolts (F3).Dimensions in inches are approximate.
| Max Cable | 3/16" |
| Working Load | 600 LBS |
| A | 1-1/2" |
| B | 2" |
| C | 7/16" |
| D | 9/16" |
| E | 1-1/8" |
| F | 3/8" |
| G | 2-15/16" |
| H | 3-3/4" |
| O | 2-1/8" |
| Y | 1-7/32" |
| Weight Each | 1.10 LBS |
