category:
Rigging & Lifting Products
country_of_origin:
USA
manufacturer:
Block Division
mpn:
02548-1/8-3-DM
subcategory:
Pulleys
type:
Swivel Eye Pulleys
weight:
2.15
Product Description

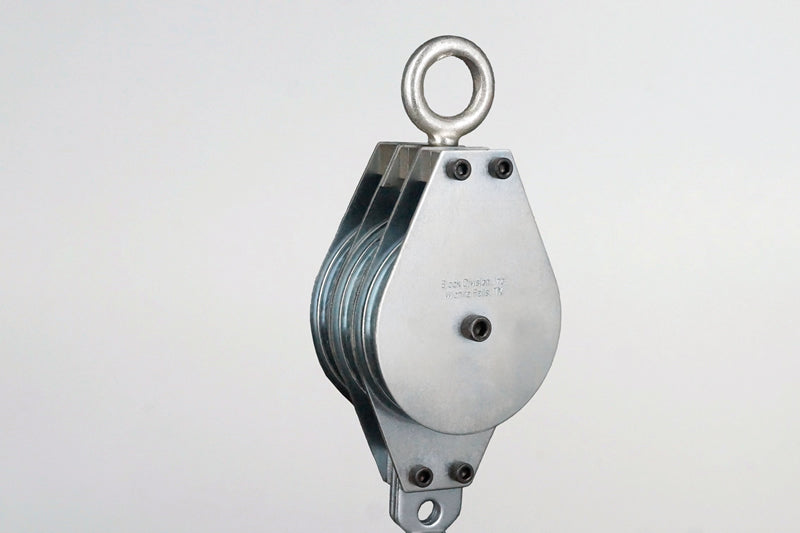

Block Division - 02548-1/8-3-DM 2 1/2″ swivel eye pulley block with deadman eye, industrial quality, forged eye, 7/16″ wide machined 3 (triple) sheaves with oil impregnated bushing grooved for 1/8″ wire rope. Clear zinc finish; safe work load of 685 lbs; weight 2.15 lbs.Dimensions in inches are approximate.
| Max Cable | 1/8" |
| Working Load | 685 LBS |
| A | 2-1/4" |
| B | 2-1/2" |
| C | 7/16" |
| D | 1-1/2" |
| E | 7/8" |
| F | 6-5/8" |
| G | 3/8" |
| H | 2-5/8" |
| Y | 1-3/4" |
| Weight Each | 2.15 lbs |
