category:
Rigging & Lifting Products
country_of_origin:
USA
manufacturer:
Block Division
mpn:
02558-1/8-SN-SS
subcategory:
Pulleys
type:
Flat Mount Pulleys
weight:
0.80
Product Description
Block Division - 02558-1/8-SN-SS 2-1/2″ Flat mount pulley block with removable snatch pin; 7/16″ wide machined sheave with oil impregnated bushing, grooved for 1/8″ maximum cable or wire rope or fibrous rope diameter; stainless steel finish; heavy duty, industrial quality; 685 lbs working load capacity; weight 0.80 lbs. The mounting hole size is 3/16″.

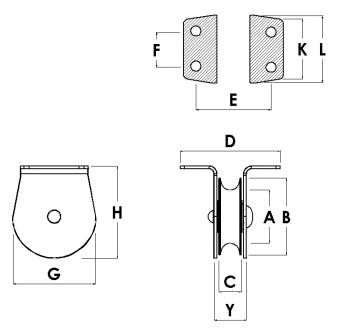

| Max Cable | 1/8" |
| Working Load | 685 LBS |
| A | 2-1/4" |
| B | 2-1/2" |
| C | 7/16" |
| D | 2" |
| E | 1-7/16" |
| F | 11/16" |
| G | 2-5/8" |
| H | 2-15/16" |
| K | 1-1/8" |
| L | 1-5/8" |
| Y | 3/5" |
| Weight Each | 0.80 LB |
