category:
Rigging & Lifting Products
country_of_origin:
USA
manufacturer:
Block Division
mpn:
03048-5/16-DM
subcategory:
Pulleys
type:
Swivel Eye Pulleys
weight:
1.40
Product Description

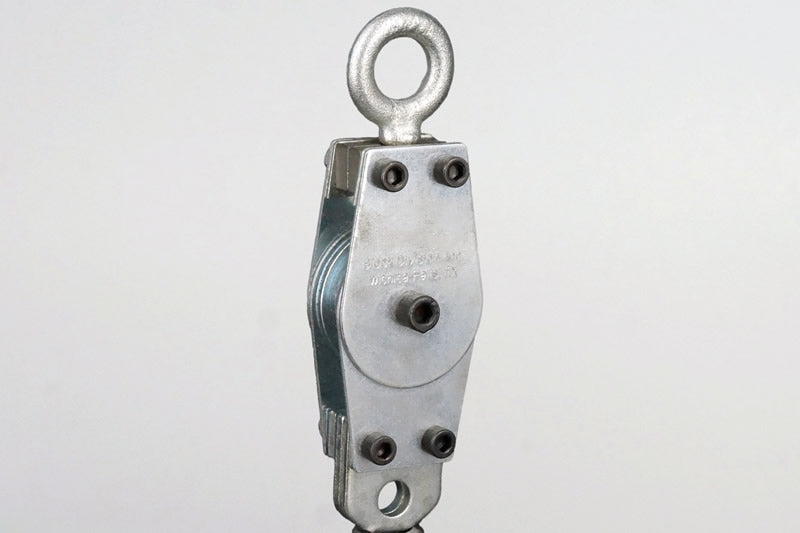

Block Division - 03048-5/16-DM 2 1/2″ swivel eye pulley block with deadman eye, industrial quality, forged eye, 7/16″ wide machined sheave with oil impregnated bushing grooved for 5/16″ wire rope. Clear zinc finish; safe work load of 800 lbs; weight 1.4 lb.Dimensions in inches are approximate.
| Max Cable | 5/16" |
| Working Load | 800 LBS |
| A | 2-1/2" |
| B | 3" |
| C | 7/16" |
| D | 1-1/2" |
| E | 7/8" |
| F | 7-3/8" |
| G | 3/8" |
| H | 3-1/8" |
| Y | 5/8" |
| Weight Each | 1.4 lbs |
