category:
Rigging & Lifting Products
country_of_origin:
USA
manufacturer:
Block Division
mpn:
03048-SN-SS
subcategory:
Pulleys
type:
Swivel Eye Pulleys
weight:
1.40
Product Description

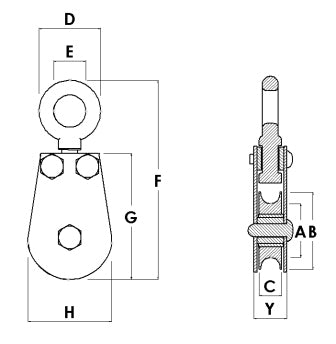

Block Division - 03048-SN-SS 3″ Swivel Eye pulley block with removable snatch pin, 800 lbs working load capacity, 7/16″ wide machined sheave with oil impregnated bushing, grooved for 1/4″ maximum cable or wire rope diameter; 7/8 inch interior eye diameter; stainless steel finish; heavy duty, industrial quality; weight 1.4 lbs.
| Max Cable | 1/4" |
| Working Load | 800 LBS |
| A | 2-1/2" |
| B | 3" |
| C | 7/16" |
| D | 1-1/2" |
| E | 7/8" |
| F | 5-5/8" |
| G | 4-1/16" |
| H | 3-1/8" |
| Y | 3/5" |
| Weight Each | 1.40 LBS |
