category:
Rigging & Lifting Products
country_of_origin:
USA
manufacturer:
Block Division
mpn:
03548-3/8-2-SS
subcategory:
Pulleys
type:
Swivel Eye Pulleys
weight:
4.95
Product Description

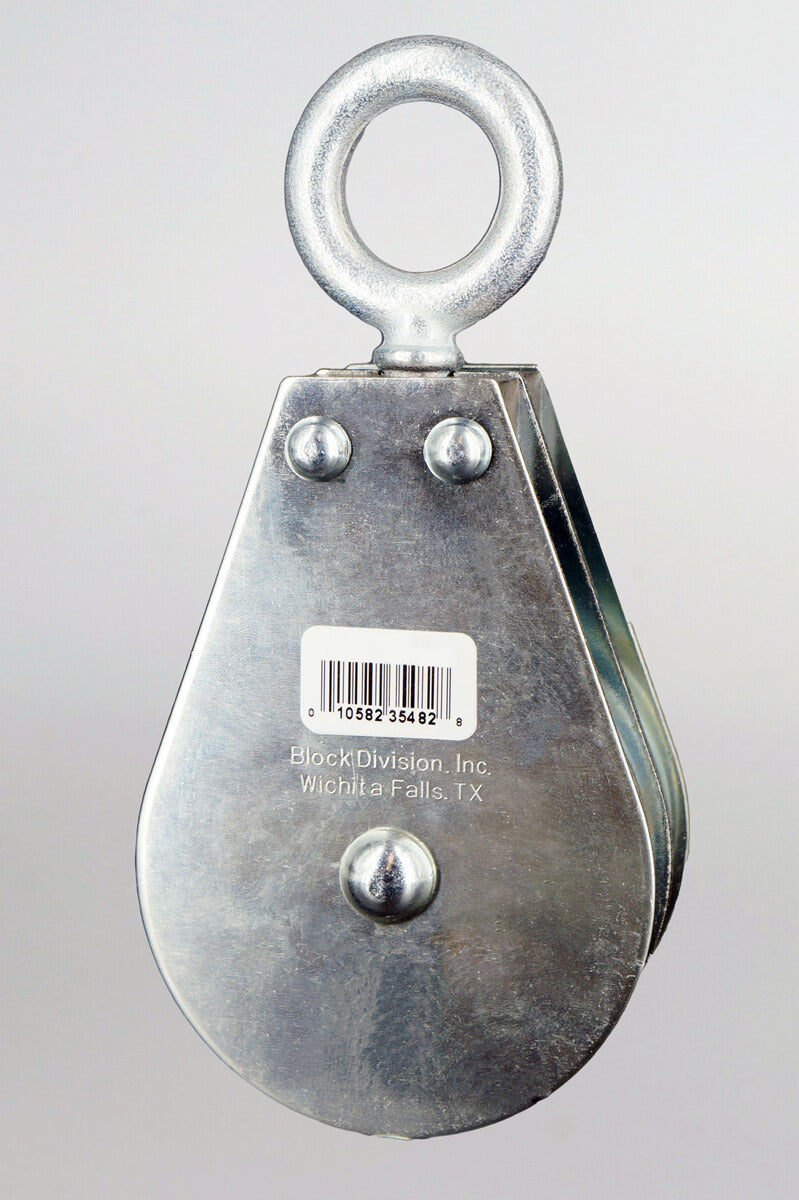

Block Division - 03548-3/8-2-SS 3.5″ Swivel eye pulley block, industrial quality, forged eye, double 5/8 inch machined sheave; oil impregnated bushing grooved for 3/8″ wire ropes. Stainless steel finish; safe work load of 1,550 lbs; weight 4.95 lbs. Options include: change the center rivet to be a removable pin/snatch; change the fastener located in the center of the pulley from a rivet to a bolt (F1); change the 2 fasteners located at the top from rivets to bolts (F2); change all 3 fasteners from rivets to bolts (F3).Dimensions in inches are approximate.
| Max Cable | 3/8" |
| Working Load | 1550 LBS |
| A | 3" |
| B | 3-1/2" |
| C | 5/8" |
| D | 2-1/16" |
| E | 1-3/16" |
| F | 7-5/8" |
| G | 5-3/8" |
| H | 3-3/4" |
| Y | 1-13/16" |
| Weight Each | 4.95 lbs |
