category:
Rigging & Lifting Products
country_of_origin:
USA
manufacturer:
Block Division
mpn:
03548-3/8-DM
subcategory:
Pulleys
type:
Swivel Eye Pulleys
weight:
3.10
Product Description

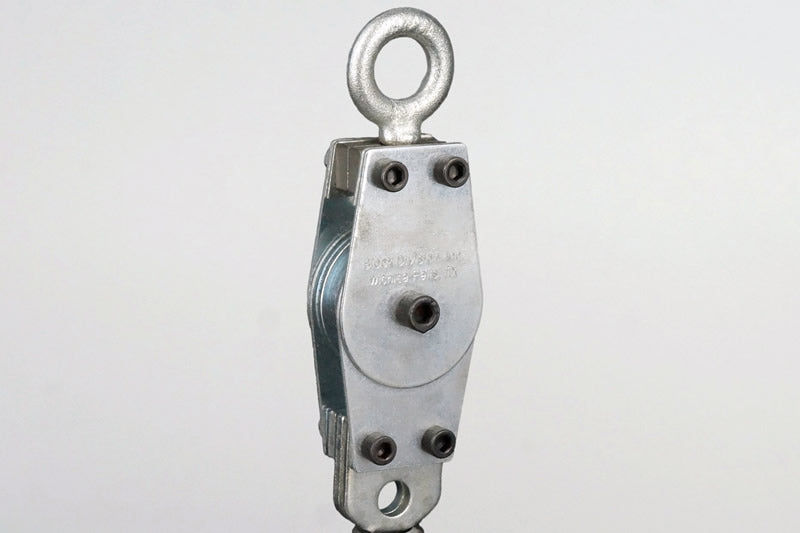

Block Division - 03548-3/8-DM 3 1/2″ swivel eye pulley block with deadman eye, industrial quality, forged eye, 5/8″ wide machined sheave with oil impregnated bushing grooved for 3/8″ wire rope. Clear zinc finish; safe work load of 1550 lbs; weight 3.1 lb.Dimensions in inches are approximate.
| Max Cable | 3/8" |
| Working Load | 1550 LBS |
| A | 3" |
| B | 3-1/2" |
| C | 5/8" |
| D | 2-1/16" |
| E | 1-3/16" |
| F | 10-1/2" |
| G | 9/16" |
| H | 3-3/4" |
| Y | 1" |
| Weight Each | 3.1 lbs |
