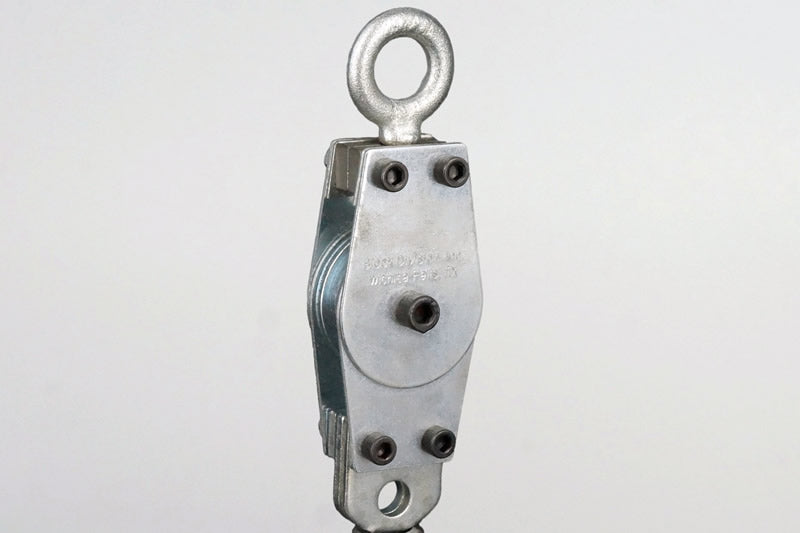

Block Division - 03548-DM 3 1/2″ swivel eye pulley block with deadman eye, industrial quality, forged eye, 5/8″ wide machined sheave with oil impregnated bushing grooved for 5/16″ wire rope. Clear zinc finish; safe work load of 1550 lbs; weight 3.1 lb.Dimensions in inches are approximate.
| Max Cable | 5/16" |
| Working Load | 1550 LBS |
| A | 3" |
| B | 3-1/2" |
| C | 5/8" |
| D | 2-1/16" |
| E | 1-3/16" |
| F | 10-1/2" |
| G | 9/16" |
| H | 3-3/4" |
| Y | 1" |
| Weight Each | 3.1 lbs |
CategoryRigging & Lifting Products
Country of originUSA
ManufacturerBlock Division
Mpn03548-DM
SubcategoryPulleys
TypeSwivel Eye Pulleys
Weight3.10
