category:
Rigging & Lifting Products
country_of_origin:
USA
manufacturer:
Block Division
mpn:
03558-1/4-2
subcategory:
Pulleys
type:
Flat Mount Pulleys
weight:
4.15
Product Description
Block Division - 03558-1/4-2 3.5″ Flat mount pulley block, industrial quality, double 5/8 inch machined sheave; oil impregnated bushing grooved for 1/4″ wire ropes. Clear galvenized zinc finish; safe work load of 1550 lbs; weight 4.15 lbs. The mounting hole size is 1/4″. Options include: change the center rivet to be a removable snatch/pin; change the fastener located in the center of the pulley from a rivet to a bolt.Dimensions in inches are approximate.

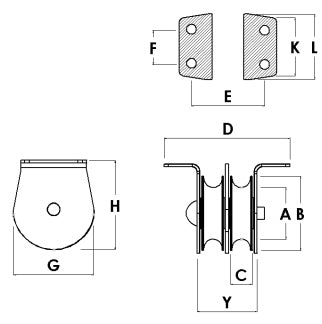

Max Cable | 1/4" |
Working Load | 1550 LBS |
A | 3" |
B | 3-1/2" |
C | 5/8" |
D | 4-1/2" |
E | 3-1/2" |
F | 1" |
G | 3-3/4" |
H | 4-3/8" |
K | 1-1/2" |
L | 2-1/4" |
Y | 1-13/16" |
Weight Each | 4.15 LBS |
