category:
Rigging & Lifting Products
country_of_origin:
USA
manufacturer:
Block Division
mpn:
03568-3-SS
subcategory:
Pulleys
type:
Fixed Eye Pulleys
weight:
7.30
Product Description
Block Division - 03568-3-SS 3.5″ Fixed eye pulley block, industrial quality, forged eye, triple 5/8 inch machined sheave; oil impregnated bushing grooved for 5/16″ wire ropes; locking nuts and bolts; stainless steel finish; safe work load of 1550 lbs; weight 7.3 lbs.Dimensions in inches are approximate.

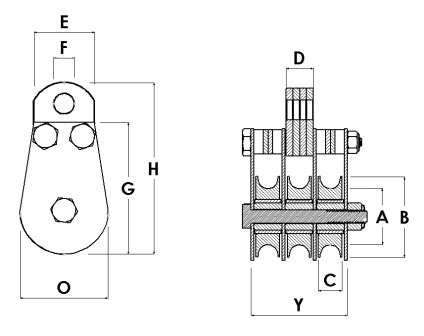

| Max Cable | 5/16" |
| Working Load | 1550 LBS |
| A | 3" |
| B | 3-1/2" |
| C | 5/8" |
| D | 5/16" |
| E | 1-1/2" |
| F | 9/16" |
| G | 5-3/8" |
| H | 6-1/2" |
| O | 3-3/4" |
| Y | 2-2/3" |
| Weight Each | 7.30 LBS |
