category:
Rigging & Lifting Products
country_of_origin:
USA
manufacturer:
Block Division
mpn:
03568-SN-SS
subcategory:
Pulleys
type:
Fixed Eye Pulleys
weight:
3.10
Product Description
Block Division - 03568-SN-SS 3.5″ Fixed eye pulley block, industrial quality, forged eye, 5/8 inch machined sheave; oil impregnated bushing grooved for 5/16″ wire rope. Stainless steel finish; safe work load of 1550 lbs; weight 3.1 lbs.Options include: change the center rivet to be a removable pin/snatch; change the fastener located in the center of the pulley from a rivet to a bolt (F1); change the 2 fasteners located at the top from rivets to bolts (F2); change all 3 fasteners from rivets to bolts (F3).Dimensions in inches are approximate.

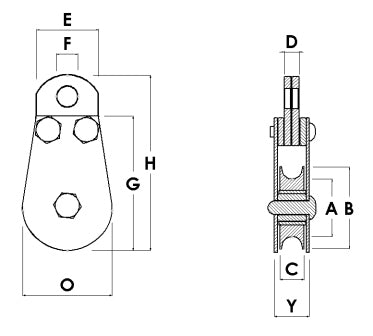

| Max Cable | 5/16" |
| Working Load | 1550 LBS |
| A | 3" |
| B | 3-1/2" |
| C | 5/8" |
| D | 5/16" |
| E | 1-1/2" |
| F | 9/16" |
| G | 5-3/8" |
| H | 6-1/2" |
| O | 3-3/4" |
| Y | 15/16" |
| Weight Each | 3.1 lbs |
