category:
Rigging & Lifting Products
country_of_origin:
USA
manufacturer:
Block Division
mpn:
03568-SS
subcategory:
Pulleys
type:
Fixed Eye Pulleys
weight:
3.10
Product Description
Block Division - 03568-SS 3-1/2″ Fixed Eye pulley block with removable snatch pin, 1550 lbs working load capacity, 5/8″ wide machined sheave with oil impregnated bushing, grooved for 5/16″ maximum cable or wire rope diameter; 9/16″ inch interior forged eye diameter; stainless steel finish; heavy duty, industrial quality; weight 3.1 lbs.

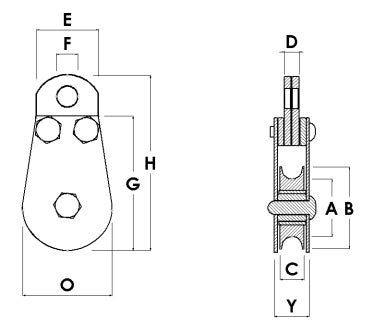

| Max Cable | 5/16" |
| Working Load | 1550 LBS |
| A | 3" |
| B | 3-1/2" |
| C | 5/8" |
| D | 5/16" |
| E | 1-1/2" |
| F | 9/16" |
| G | 5-3/8" |
| H | 6-1/2" |
| O | 3-3/4" |
| Y | 15/16" |
| Weight Each | 3.10 lbs |
