category:
Rigging & Lifting Products
country_of_origin:
USA
manufacturer:
Block Division
mpn:
03578-3/8-3
subcategory:
Pulleys
type:
Swivel Hook Pulleys
weight:
7.30
Product Description

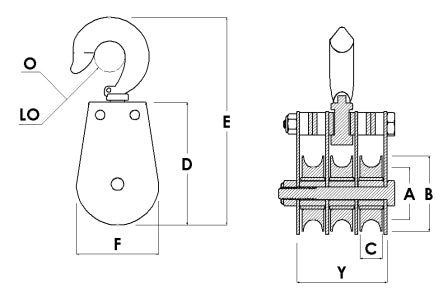

Block Division - 03578-3/8-3 3.5″ Swivel Hook pulley block, industrial quality, forged hook, triple 5/8 inch machined sheave; oil impregnated bushing grooved for 3/8″ wire ropes; locking nuts and bolts; Clear zinc finish; safe work load of 1550 lbs; weight 7.30 lbs. Optional steel latch available.Dimensions in inches are approximate.
| Max Cable | 3/8" |
| Working Load | 1550 LBS |
| A | 3" |
| B | 3-1/2" |
| C | 5/8" |
| D | 5-3/8" |
| E | 8-1/2" |
| F | 3-3/4" |
| LO | 15/16" |
| O | 13/16" |
| Y | 2-2/3" |
| Weight Each | 7.30 LBS |
