category:
Rigging & Lifting Products
country_of_origin:
USA
manufacturer:
Block Division
mpn:
04048-2-DM
subcategory:
Pulleys
type:
Swivel Eye Pulleys
weight:
5.95
Product Description

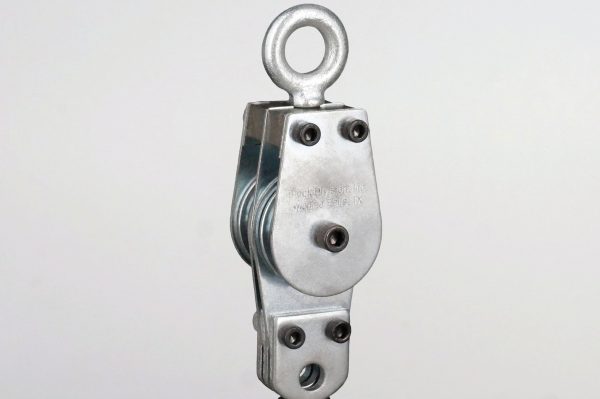

Block Division - 04048-2-DM 4″ swivel eye pulley block with deadman eye, industrial quality, forged eye, 2 (double) 5/8″ wide machined sheaves with oil impregnated bushing grooved for 3/8″ wire rope. Clear zinc finish; safe work load of 1700 lbs; weight 5.95 lbs.Dimensions in inches are approximate.

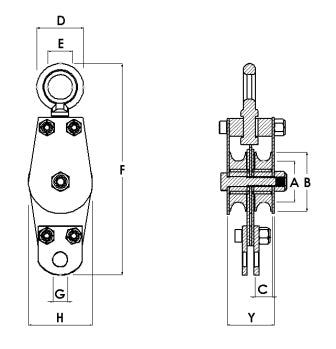

| Max Cable | 3/8" |
| Working Load | 1700 LBS |
| A | 3-1/4" |
| B | 4" |
| C | 5/8" |
| D | 2-1/16" |
| E | 1-3/16" |
| F | 11-1/4" |
| G | 9/16" |
| H | 4-1/4" |
| Y | 1-13/16" |
| Weight Each | 5.95 lbs |
