category:
Rigging & Lifting Products
country_of_origin:
USA
manufacturer:
Block Division
mpn:
04048-3
subcategory:
Pulleys
type:
Swivel Eye Pulleys
weight:
8.55
Product Description
Block Division - 04048-3 4″ Swivel eye pulley block, industrial quality, forged eye, triple 5/8 inch machined sheave; oil impregnated bushing grooved for 3/8″ wire rope; locking nuts and bolts; Zinc finish; safe work load of 1700 lbs; weight 8.55 lbs.Dimensions in inches are approximate.

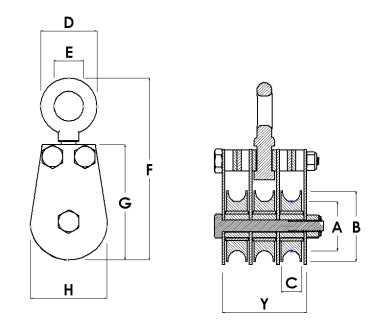

| Max Cable | 3/8" |
| Working Load | 1700 LBS |
| A | 3-1/4" |
| B | 4" |
| C | 5/8" |
| D | 2-1/16" |
| E | 1-3/16" |
| F | 8-3/8" |
| G | 6" |
| H | 4-1/4" |
| Y | 2-11/16" |
| Weight Each | 8.55 lbs |
