category:
Rigging & Lifting Products
country_of_origin:
USA
manufacturer:
Block Division
mpn:
04048-SN-SS
subcategory:
Pulleys
type:
Swivel Eye Pulleys
weight:
3.60
Product Description

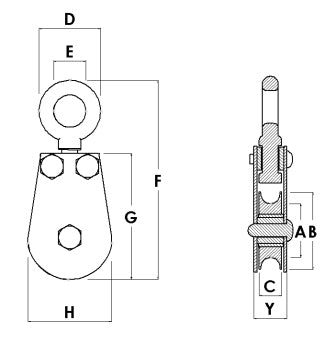

Block Division - 04048-SN-SS 4″ Swivel Eye pulley block with removable snatch pin, 1700 lbs working load capacity, 5/8″ wide machined sheave with oil impregnated bushing, grooved for 3/8″ maximum cable or wire rope diameter; 1-3/16″ inch interior forged eye diameter; stainless steel finish; heavy duty, industrial quality; weight 3.6 lbs.
| Max Cable | 3/8" |
| Working Load | 1700 LBS |
| A | 3-1/4" |
| B | 4" |
| C | 5/8" |
| D | 2-1/16" |
| E | 1-3/16" |
| F | 8-3/8" |
| G | 6" |
| H | 4-1/4" |
| Y | 15/16" |
| Weight Each | 3.6 lbs |
