category:
Accessories
country_of_origin:
USA
manufacturer:
Block Division
mpn:
04058-2-SN-SS
subcategory:
Sheaves, Bushings and Bearings
weight:
5.15
Product Description
Block Division - 04058-2-SN-SS 4″ Flat mount pulley block with removable snatch pin; double 5/8″ wide machine sheaves with oil impregnated bushing, grooved for 3/8″ maximum cable or wire rope or fibrous rope diameter; stainless steel finish; heavy duty, industrial quality; 1700 lbs working load capacity; weight 5.15 lbs. The mounting hole size is 1/4″.

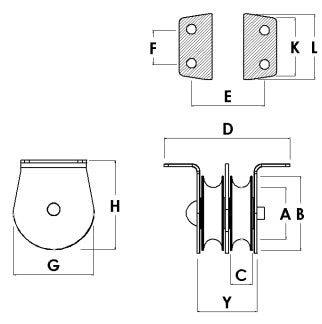

| Max Cable | 3/8" |
| Working Load | 1700 LBS |
| A | 3-1/4" |
| B | 4" |
| C | 5/8" |
| D | 4-1/2" |
| E | 3-1/2" |
| F | 1" |
| G | 4-1/4" |
| H | 4-15/16" |
| K | 1-1/2" |
| L | 2-1/2" |
| Y | 1-13/16" |
| Weight Each | 5.15 LBS |
