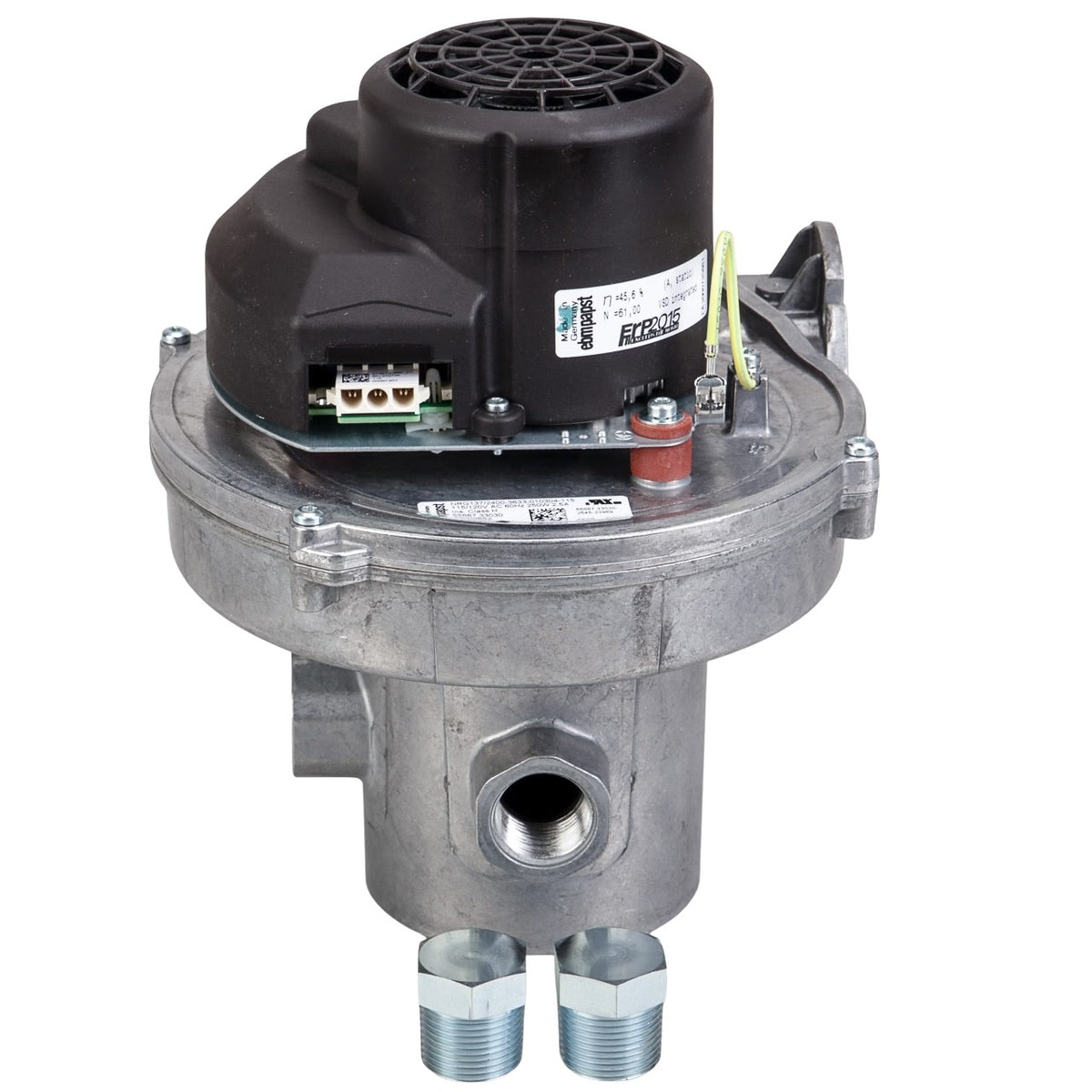

Bosch 7738005006 Fan115V/120V AC 60 Hz250W 2.5A

- Combustion air blower supplies pressurized air to HVAC heating equipment burners.

- Draws ambient air and delivers a controlled charge for clean firing across the modulation range.

- Operates on 115V/120V AC at 60 Hz.

- Draws 250 W at 2.5 A.

- Integrated variable speed drive for modulated output.

- Class H insulation withstands sustained high-temperature duty.

- Reaches 45.6 percent static efficiency at an efficiency grade of 61.

- Contoured bell mouth inlet throat seated in a die-cast aluminum volute.

- Rectangular bolt flange discharge on the side of the housing.

- Integrally cast mounting lugs hold gasket compression and alignment under continuous vibration.

- Machined threaded pressure tap ports seat flush against the burner plate.

- Alternate part number 7-738-005-006.

- SSB800 SA.

- SSB1000 SA.

- SSB1000 TL.

- SSB-399.

- SSB-512.

The Bosch 7738005006 is a combustion air blower that supplies the pressurized air charge for HVAC heating equipment, pulling in ambient air and delivering it to the burner at a controlled rate so the appliance fires cleanly through its full modulation range. It operates on 115V/120V AC at 60 Hz, draws 250 W at 2.5 A, and pairs an integrated variable speed drive with Class H insulation for stable output under sustained high temperature duty, reaching 45.6 percent static efficiency at an efficiency grade of 61. Air enters through a contoured bell mouth throat seated in a die-cast aluminum volute and discharges through a rectangular bolt flange on the side of the housing, with integrally cast mounting lugs and machined threaded pressure tap ports that let the assembly seat flush against the burner plate, hold gasket compression, and stay aligned under continuous vibration. That cast housing geometry is what makes it a direct fit replacement, so verifying flange pattern and port placement against the outgoing unit is the key step before installation.
