category:
Residential Boilers
country_of_origin:
PT
manufacturer:
Bosch Water Heater
mpn:
8-718-573-519
subcategory:
Indirect Hot Water Heater
Product Description

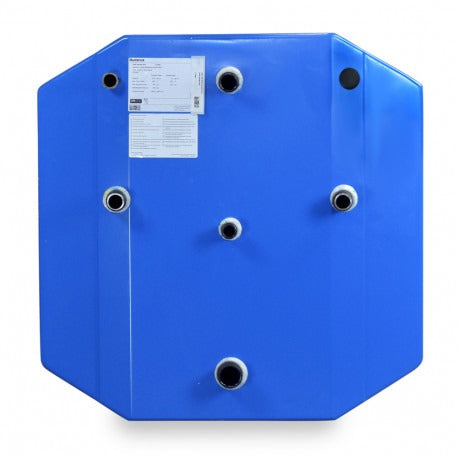

Bosch Water Heater - 8-718-573-519 Bosch domestic hot water tanks offer features that provide ease of installation, simple maintenance and reliable operation. All Thermoglaze models are equipped with a magnesium anode rod for protection against corrosion, a drain for easy maintenance, and have adjustable screw-on feet for leveling plus easy-access covers aid in cleaning and maintaining the coil and tank interior.
Buderus LT200 is a horizontal, single-coil indirect hot water tank with 52.5-gallon DHW capacity. It features Thermoglaze ceramic coating (on both tank and coil) and a magnesium anode rod for superior corrosion protection. Designed to fit under Buderus boilers for smaller footprint.
Additional Information
PART NO.8718573519
Single Coil Indirect TanksLT200 (Blue)
ModelHORIZONTAL SINGLE COIL MODELS
Tank Capacity, Potable Volume, gal52.5
Diameter, in.25 ¾
Height, in.25 ¾
Length, in.42 ¼
Connection Heat Exchanger Coil, in.1
Connection DHW outlet, in.1
Connection Cold Water Inlet, in.1 ¼
Connection Recirculation, in. ¾
Approx. Dry Weight, lbs.247
Max. DHW Temperature, °F203
Max. DHW Operating Pressure, psi150
Max. Heat Exchanger Coil Water Temperature, °F212
Max. Heat Exchanger Coil Pressure, psi232
First Hour Rating, gph176
Continuous Rating, gph (continuous draw)128
Heat Input to Tank, mbh (min heat source output)82
Boiler Water Flow Rate, gpm (min heat source flow)14.0
Coil Pressure Drop, ft of head (heat friction loss)2.8
