Bosch Water Heater - 8-718-573-520 Bosch domestic hot water tanks offer features that provide ease of installation, simple maintenance and reliable operation. All Thermoglaze models are equipped with a magnesium anode rod for protection against corrosion, a drain for easy maintenance, and have adjustable screw-on feet for leveling plus easy-access covers aid in cleaning and maintaining the coil and tank interior.

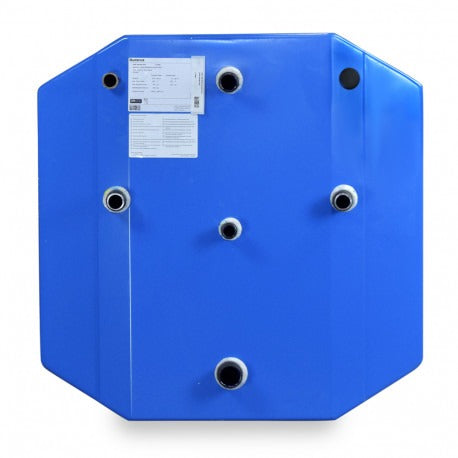

Buderus LT160 is a horizontal, single-coil indirect hot water tank with 42.6-gallon DHW capacity. It features Thermoglaze ceramic coating (on both tank and coil) and a magnesium anode rod for superior corrosion protection. Designed to fit under Buderus boilers for smaller footprint.
Additional Information
PART NO.8718573520
Single Coil Indirect TanksLT160 (Blue)
ModelVERTICAL SINGLE COIL MODELS
Tank Capacity, Potable Volume, gal42.6
Diameter, in.263/8
Height, in.25 ¾
Length, in.36 ¼
Connection Heat Exchanger Coil, in. ¾
Connection DHW outlet, in. ¾
Connection Cold Water Inlet, in.1
Connection Recirculation, in. ¾
Approx. Dry Weight, lbs.220
Max. DHW Temperature, °F203
Max. DHW Operating Pressure, psi150
Max. Heat Exchanger Coil Water Temperature, °F212
Max. Heat Exchanger Coil Pressure, psi232
First Hour Rating, gph163
Continuous Rating, gph (continuous draw)122
Heat Input to Tank, mbh (min heat source output)76
Boiler Water Flow Rate, gpm (min heat source flow)14.0
Coil Pressure Drop, ft of head (heat friction loss)2.4
