category:
IDS_Climate 5000_Furnace
country_of_origin:
US
manufacturer:
Bosch Water Heater
mpn:
8-733-947-948
subcategory:
Inverter Split System Ducted Coils
Product Description
Product Overview

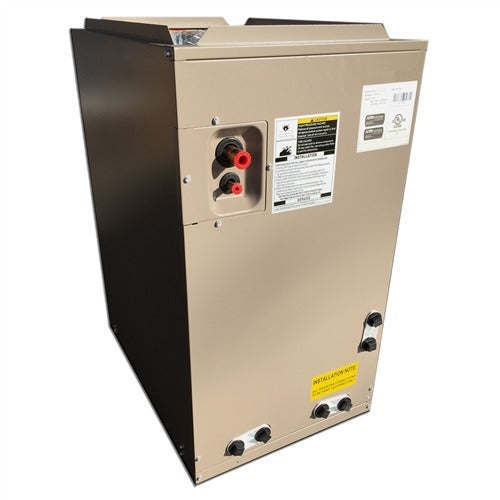

Bosch BMAC2430BNTD Horizontal/Vertical Mount Cased Coil, 24000 Btu/hr Nominal, Multi-Position Air Flow, R-410A Refrigerant
Additional Information
Model NumberBMAC2430BNTD
CFM700
Orifice size & TXV part numberTXV
Cooling Capacity (BTUH) 95 °F High23400
EER 95 °F11.5
SEER15
Superheat 95 „‰ -TXV8.1
Subcooling 95 „‰ -TXV9.5
High Heat(BTUH) 47 „‰25000
HSPF9
Used With Furnaces Flush on Both Sides17-1/2" Wide Furnaces
Tube size(in. (mm))9/32(7)
Cased Coil Unit Dimension(W*H*D)(in.)17-1/2 — 20 — 21
Cased Coil Unit Dimension(W*H*D)(mm)445 — 508 — 553
Packaged dimension(in.)20-5/8 — 22-5/8 — 25
Packaged dimension(mm)524 — 574 — 634
Net/Gross weight(lb)43/50
Net/Gross weight(kg)19.4/22.9
Drainage pipe outside diameter(in.)RC3/4
Air Supply duct size (œA x 19)(inch)16 — 19
Air Return duct size (œW1 x 20)(inch)16 ½ x 20
Refrigerant()R-410A
Liquid side / Gas side(in.)3/8 3/4
Shipping per STD40 HQ()380
