Product Description
Product Overview

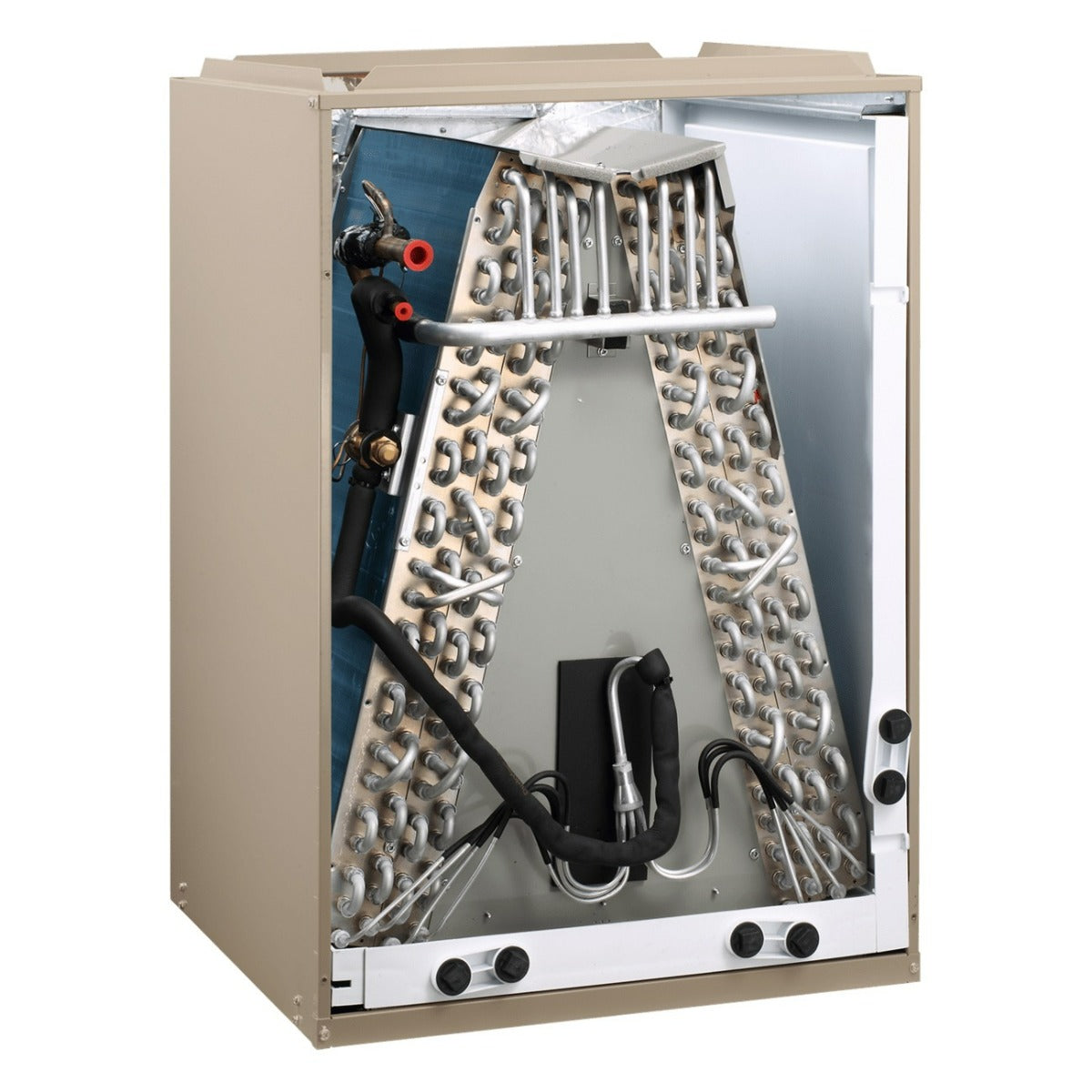

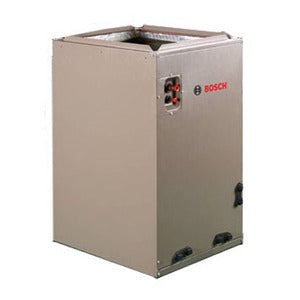

Bosch BMAC3036CNTD Horizontal/Vertical Mount Cased Coil, 36000 Btu/hr Nominal, Multi-Position Air Flow, R-410A Refrigerant
Additional Information
Model NumberBMAC3036CNTD
CFM1000
Orifice size & TXV part numberTXV
Cooling Capacity (BTUH) 95 °F High32400
EER 95 °F10
SEER14.5
Superheat 95 „‰ -TXV8
Subcooling 95 „‰ -TXV9
High Heat(BTUH) 47 „‰35000
HSPF9
Used With Furnaces Flush on Both Sides21" Wide Furnaces
Tube size(in. (mm))9/32(7)
Cased Coil Unit Dimension(W*H*D)(in.)21 — 20 — 21
Cased Coil Unit Dimension(W*H*D)(mm)553 — 508 — 553
Packaged dimension(in.)24-1/8 — 22-5/8 — 25
Packaged dimension(mm)614 — 574 — 634
Net/Gross weight(lb)46/55
Net/Gross weight(kg)21.1/25.1
Drainage pipe outside diameter(in.)RC3/4
Air Supply duct size (œA x 19)(inch)19-1/2 — 19
Air Return duct size (œW1 x 20)(inch)20 x 20
Refrigerant()R-410A
Liquid side / Gas side(in.)3/8 3/4
Shipping per STD40 HQ()310
