Product Description
Product Overview

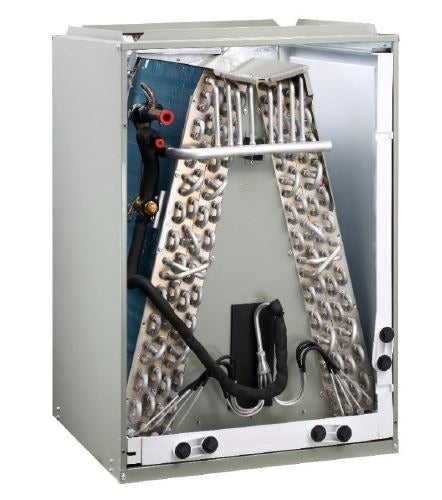

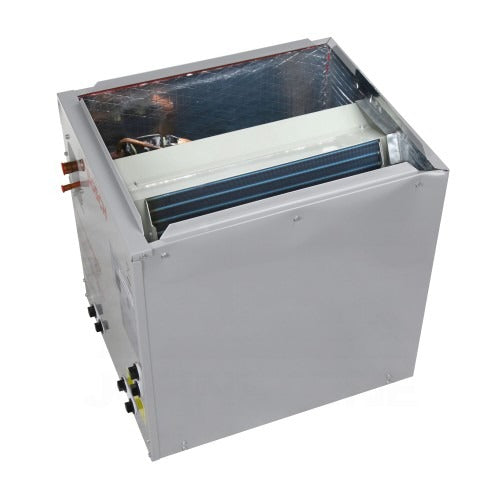

Bosch BMAC4248BNTF Horizontal/Vertical Mount Cased Coil, 48000 Btu/hr Nominal, Multi-Position Air Flow, R-410A Refrigerant
Additional Information
Model NumberBMAC4248BNTF
CFM1150
Orifice size & TXV part numberTXV
Cooling Capacity (BTUH) 95 °F High44500
EER 95 °F11
SEER16
Superheat 95 „‰ -TXV8.4
Subcooling 95 „‰ -TXV8.4
High Heat(BTUH) 47 „‰45500
HSPF9.5
Used With Furnaces Flush on Both Sides17-1/2" Wide Furnaces
Tube size(in. (mm))3/8(9.52)
Cased Coil Unit Dimension(W*H*D)(in.)17-1/2 — 30 — 21
Cased Coil Unit Dimension(W*H*D)(mm)445 — 762 — 553
Packaged dimension(in.)20-5/8 — 32-7/8 — 24-2/5
Packaged dimension(mm)524 — 835 — 598
Net/Gross weight(lb)69/76
Net/Gross weight(kg)31.2/34.5
Drainage pipe outside diameter(in.)RC3/4
Air Supply duct size (œA x 19)(inch)16 — 19
Air Return duct size (œW1 x 20)(inch)16 ½ x 20
Refrigerant()R-410A
Liquid side / Gas side(in.)3/8 7/8
Shipping per STD40 HQ()270
