category:
IDS_Climate 5000_Furnace
country_of_origin:
US
manufacturer:
Bosch Water Heater
mpn:
8-733-947-955
subcategory:
Inverter Split System Ducted Coils
Product Description
Product Overview

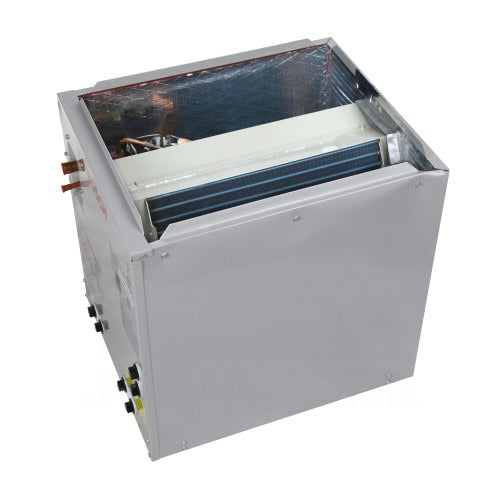

Bosch BMAC4248DNTF Horizontal/Vertical Mount Cased Coil, 48000 Btu/hr Nominal, Multi-Position Air Flow, R-410A Refrigerant
Additional Information
Model NumberBMAC4248DNTF
CFM1400
Orifice size & TXV part numberTXV
Cooling Capacity (BTUH) 95 °F High46500
EER 95 °F11
SEER16
Superheat 95 „‰ -TXV8.5
Subcooling 95 „‰ -TXV9.2
High Heat(BTUH) 47 „‰48000
HSPF9.5
Used With Furnaces Flush on Both Sides24-1/2" Wide Furnaces
Tube size(in. (mm))3/8(9.52)
Cased Coil Unit Dimension(W*H*D)(in.)24-1/2 — 30 — 21
Cased Coil Unit Dimension(W*H*D)(mm)622 — 762 — 553
Packaged dimension(in.)27-1/2 — 32-7/8 — 24-2/5
Packaged dimension(mm)700 — 835 — 598
Net/Gross weight(lb)77/85
Net/Gross weight(kg)34.8/38.8
Drainage pipe outside diameter(in.)RC3/4
Air Supply duct size (œA x 19)(inch)23 — 19
Air Return duct size (œW1 x 20)(inch)24 ½ x 20
Refrigerant()R-410A
Liquid side / Gas side(in.)3/8 7/8
Shipping per STD40 HQ()193
