Product Description
Product Overview

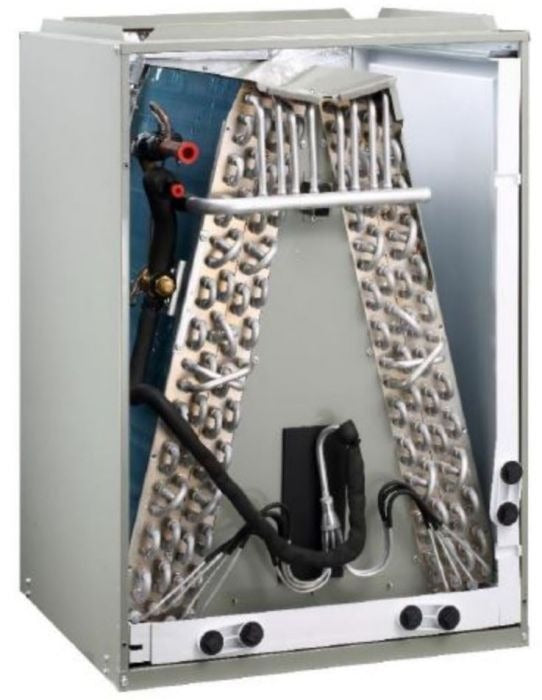

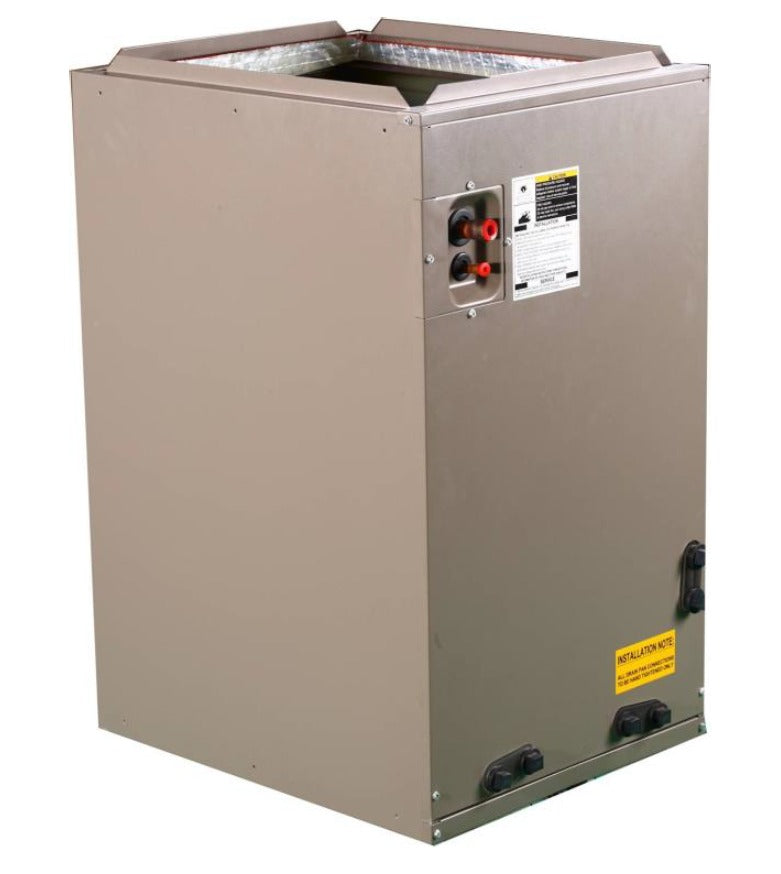

Bosch BMAC4860DNTF Horizontal/Vertical Mount Cased Coil, 60000 Btu/hr Nominal, Multi-Position Air Flow, R-410A Refrigerant
Additional Information
Model NumberBMAC4860DNTF
CFM1500
Orifice size & TXV part numberTXV
Cooling Capacity (BTUH) 95 °F High55000
EER 95 °F10.5
SEER16
Superheat 95 „‰ -TXV9
Subcooling 95 „‰ -TXV8.6
High Heat(BTUH) 47 „‰56000
HSPF9.5
Used With Furnaces Flush on Both Sides24-1/2" Wide Furnaces
Tube size(in. (mm))3/8(9.52)
Cased Coil Unit Dimension(W*H*D)(in.)24-1/2 — 30 — 21
Cased Coil Unit Dimension(W*H*D)(mm)622 — 762 — 553
Packaged dimension(in.)27-1/2 — 32-7/8 — 24-2/5
Packaged dimension(mm)700 — 835 — 598
Net/Gross weight(lb)80/89
Net/Gross weight(kg)36.5/40.5
Drainage pipe outside diameter(in.)RC3/4
Air Supply duct size (œA x 19)(inch)23 — 19
Air Return duct size (œW1 x 20)(inch)24 ½ x 20
Refrigerant()R-410A
Liquid side / Gas side(in.)3/8 7/8
Shipping per STD40 HQ()193
