category:
IDS_Climate 5000_Furnace
country_of_origin:
US
manufacturer:
Bosch Water Heater
mpn:
8-733-954-410
subcategory:
Inverter Ducted Packaged
Product Description
Product Overview
Additional Information

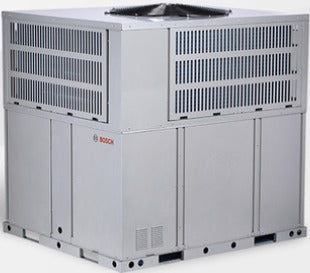

Model No.BRB-36HWD1N1-M18
Electrical Data
Rated Volts/PH/Hz208-230/1/60
Performance Cooling23 °F - 125 °F
BTUH (High)34800
Indoor Airflow (CFM)1250
Power Input (KW)2.9
SEER / EER-HI18.5/12
Performance Heating-4 °F - 86 °F
(High Temp.) BTUH / COP (High)36000/3.7
Power Input (KW)2.88
HSPF (BTU / Watt-Hr.)9
Power Conn. - V/Ph/Hz208-230/1/60
Min. Brch. Cir. Ampacity ¹28.7
Max. Overcurrent Protection ²45
Min. / Max. Volts172/270
Fuse Size - Max. / Recmd. (amps)45
CompressorRotary
Volts/Ph/Hz208-230/1/60
R.L. Amps - L.R. Amps19/52
Outdoor Coil - TypeFinned Tube Exchanger
Rows/F.P.I.(3+2) / 17*
Face Area (sq.ft.)14.11
Tube Size (in.)9/32
Circuitry TypeInterlaced
Refrigerant ControlElectronic Expansion Valve
Indoor Coil - TypeFinned Tube Exchanger
Rows/F.p.i.4 / 17
Face Area (Sq.ft.)3.96
Tube Size (In.)9/32
Circuitry TypeInterlaced
Drain Conn. Size (In.)3/4 FEMALE NPT
Outdoor Fan - TypePropeller
Dia. (in.)23-5/8"
Drive/No. SpeedsDirect / 10
CFM @0.0 in. w.g.3032
Motor - HP/R.P.M.1/3 / 200~880
Volts/Ph/Hz208-230/1/60
F.L. Amps/L.R. Amps1.4/1.4
Indoor Fan - TypeCentrifugal
Dia x Width (in.)11 X 10-3/4"
Drive/No. SpeedsDirect / 5
CFM @0.0 in. w.g.See Airflow Performance Table
Motor - HP/R.P.M.1/2 / 1050
Volts/Ph/Hz208-230/1/60
F.L. Amps/L.R. Amps3.5 / 3.5
Filter / FurnishedNo
Type RecommendedThrowaway
Recmd. Face Area (L x W x D)16" x 10" x 1"
Refrigerant / Charge (lbs. - oz.)R410a / 7-8
Dimensions Unit only L x W x H (in.)50-11/16" x35-1/16" x46-13/16"
Weight-Net (lbs.)412
Weight-Gross (lbs.)432
