category:
IDS_Climate 5000_Furnace
country_of_origin:
US
manufacturer:
Bosch Water Heater
mpn:
7-738-006-459
subcategory:
Inverter Ducted Packaged
Product Description
Product Overview
- Superior efficiency “ rated up to 19 SEER, 12.5 EER, 10 HSPF
- Inverter Compressor (36%-118% speed), modulation in 1% increments
- IDP 3T “ Provides up to 4-stage indoor fan control, mobile home certified for high static
- IDP 5T “ Provides up to 2-stage indoor fan control u 10 speed ECM outdoor blower for premium efficiency and whisper quiet operation
- Easy to install “ 2-way design allows for horizontal and downflow installations, air return/supply are field convertible
- ENERGY STAR rated
- Compatible with the Bosch Connected Control (BCC) Thermostat family(1)
- Operates in cooling up to 1250 F
- Dimensions:Unit only L x W x H (in.) - 51-9/16" x 44-13/16" x 51-7/16"
- Weight: Gross: 596lbs Net: 561lbs
Additional Information

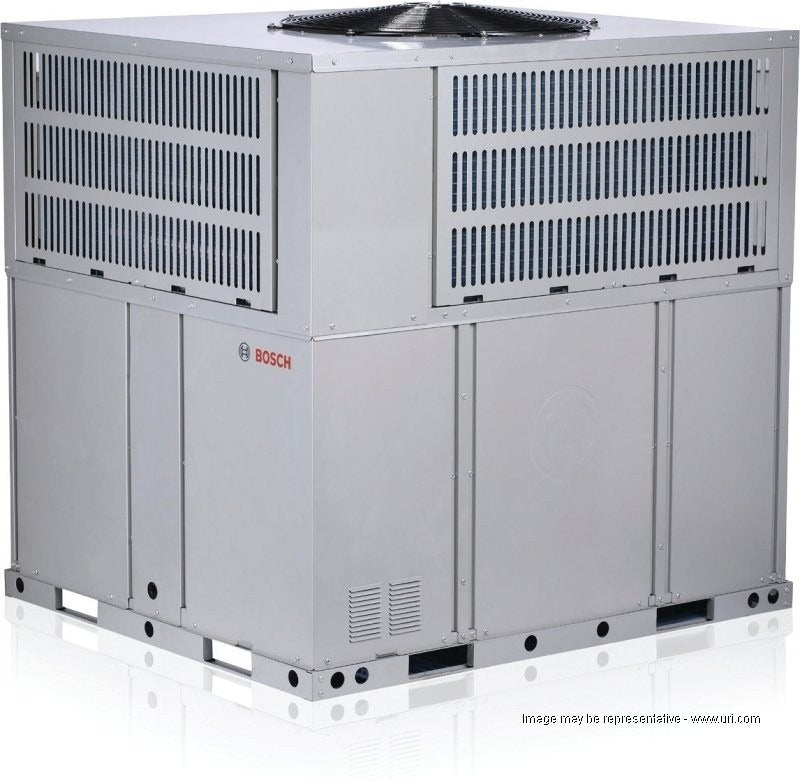

Model No.BRB-60HWD1N1-M19
Electrical Data
Rated Volts/PH/Hz208-230/1/60
Performance Cooling23 °F - 125 °F
BTUH (High)57000
Indoor Airflow (CFM)1800
Power Input (KW)4.56
SEER / EER-HI19/12.5
Performance Heating-4 °F - 86 °F
(High Temp.) BTUH / COP (High)57000/3.8
Power Input (KW)4.4
HSPF (BTU / Watt-Hr.)10
Power Conn. - V/Ph/Hz208-230/1/60
Min. Brch. Cir. Ampacity ¹41.9
Max. Overcurrent Protection ²60
Min. / Max. Volts172 / 270
Fuse Size - Max. / Recmd. (amps)60
CompressorRotary
Volts/Ph/Hz208-230/1/60
R.L. Amps - L.R. Amps27/52
Outdoor Coil - TypeFinned Tube Exchanger
Rows/F.P.I.3 / 17
Face Area (sq.ft.)20.17
Tube Size (in.)9/32
Circuitry TypeInterlaced
Refrigerant ControlElectronic Expansion Valve
Indoor Coil - TypeFinned Tube Exchanger
Rows/F.p.i.4 / 17
Face Area (Sq.ft.)6.1
Tube Size (In.)9/32
Circuitry TypeInterlaced
Drain Conn. Size (In.)3/4 FEMALE NPT
Outdoor Fan - TypePropeller
Dia. (in.)26-3/8"
Drive/No. SpeedsDirect / 10
CFM @0.0 in. w.g.4100
Motor - HP/R.P.M.1/3 / 200~880
Volts/Ph/Hz208-230/1/60
F.L. Amps/L.R. Amps2.1/2.1
Indoor Fan - TypeCentrifugal
Dia x Width (in.)11 X 10-5/8"
Drive/No. SpeedsDirect / 5
CFM @0.0 in. w.g.See Airflow Performance Table
Motor - HP/R.P.M.3/4 / 1075
Volts/Ph/Hz208-230/1/60
F.L. Amps/L.R. Amps6.0 / 6.0
Filter / FurnishedNo
Type RecommendedThrowaway
Recmd. Face Area (L x W x D)16" x 14" x 1"
Refrigerant / Charge (lbs. - oz.)R410a / 12 - 9
Dimensions Unit only L x W x H (in.)51-9/16" x 44-13/16" x 51-7/16"
Weight-Net (lbs.)561
Weight-Gross (lbs.)596
