category:
IDS_Climate 5000_Furnace
country_of_origin:
US
height:
44-13/16"
manufacturer:
Bosch Water Heater
mpn:
8-733-957-356
subcategory:
Inverter Ducted Packaged
weight:
556
width:
51-7/16"
Product Description
Product Overview

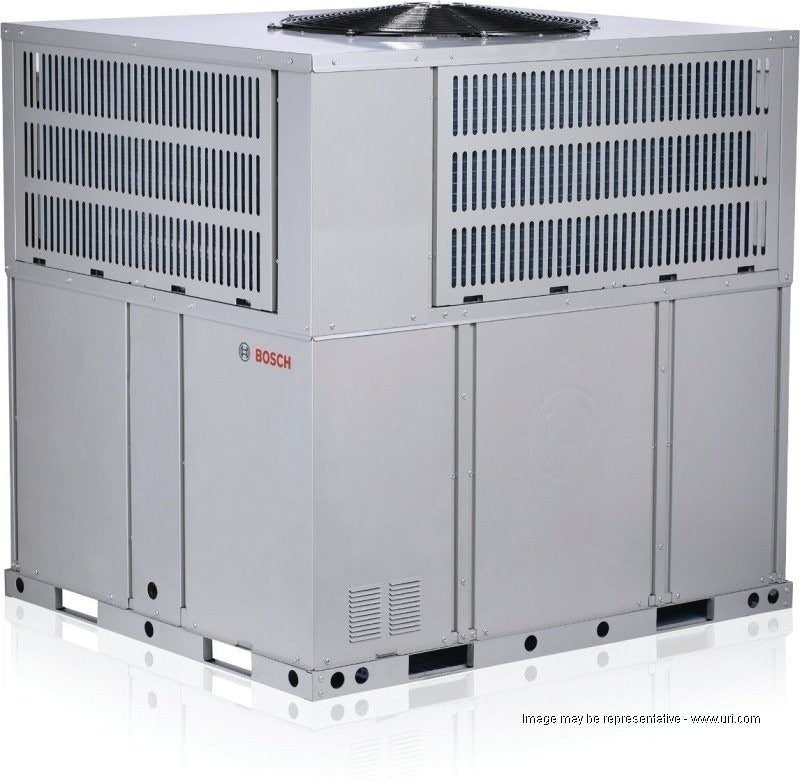

The Bosch IDP is one of the quietest air-to-air heat pumps on the market. Through the use of silent blade technology,sound isolating mounts, and outdoor condensing section placement, the system can deliver outdoor sound levels as low as 56dBA. This sound performance is far superior to any standard system on the market.Modulating inverter systems deliver only the amount of hot or cool air needed to achieve the desired temperature “ no more, no less. Bosch's IDP system can provide you with maximum comfort levels at a minimum cost.
- Superior efficiency “ rated up to 19 SEER, 12.5 EER, 10 HSPF
- Inverter Compressor (36%-118% speed), modulation in 1% increments
- IDP 3T “ Provides up to 4-stage indoor fan control, mobile home certified for high static
- IDP 5T “ Provides up to 2-stage indoor fan control u 10 speed ECM outdoor blower for premium efficiency and whisper quiet operation
- Easy to install “ 2-way design allows for horizontal and downflow installations, air return/supply are field convertible
- ENERGY STAR rated
- Compatible with the Bosch Connected Control (BCC) Thermostat family(1)
- Operates in cooling up to 1250 F
- Dimensions:Unit only L x W x H (in.) 51-9/16" x 44-13/16" x 51-7/16"
- Weight: Gross: 591lbs Net: 556lbs
Additional Information
Model No.BRBA-60HWD1N1-M18
Electrical Data
Rated Volts/PH/Hz208-230/1/60
Performance Cooling
BTUH (High)57000
Indoor Airflow (SCFM)1900
Power Input (KW)5.10
SEER2/ EER2 - HI18/11.2
Performance Heating
(High Temp.) BTUH / COP (High)57000
Power Input (KW)4.60
HSPF2 (BTU / Watt-Hr.)9.0
Power Conn. - V/Ph/Hz208-230/1/60
Min. Brch. Cir. Ampacity41.9A
Max. Overcurrent Protection68.9A
Min. / Max. Volts173 / 269
Fuse Size - Max. / Recmd. (amps)60A
CompressorRotary
VoltsDC Inverter
R.L. Amps27
Outdoor Coil - TypeCu Finned Tube
Rows/F.P.I.3+3/17*
Face Area (sq.ft.)20.17
Tube Size (in.)9/32
Circuitry TypeInterlaced
Refrigerant ControlEEV
Indoor Coil - TypeAl
Rows / F.P.I.4/17
Face Area (sq.ft.)6.10
Tube Size (in.)9/32
Circuitry Typeinterlaced
Drain Conn. Size (in.)3/4'' Female NPT
Outdoor Fan - TypePropeller
Dia. (in.)26-3/8"
Drive/No. SpeedsDirect / 10
CFM @0.0 in. w.g.4100
Motor - HP/R.P.M.1/3HP/200~880R.P.M.
VoltsDC310V
F.L. Amps/L.R. Amps2.1/-
Indoor Fan - TypeCentrifugal
Dia x Width (in.)11x10-5/8''
Drive/No. SpeedsDirect / 5
CFM @0.0 in. w.g.1900@0.58
Motor - HP/R.P.M.3/4HP/1075R.P.M.
Volts/Ph/Hz208-230/1/60
F.L. Amps/L.R. Amps6/-
Recmd. Face Area (L x W x D)16"×14"×1"
Refrigerant / Charge (lbs. - oz.)R410a/ 12-9
Dimensions Bare L x W x H (in.)51-9/16" x 51-7/16" x 44-13/16"
Weight-Net (lbs.)556
Weight-Gross (lbs.)591
