category:
IDS_Climate 5000_Furnace
country_of_origin:
US
manufacturer:
Bosch Water Heater
mpn:
8-733-957-355
subcategory:
Inverter Ducted Packaged
Product Description
Product Overview
Additional Information

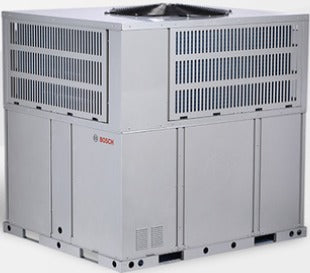

Model No.BRBA-36HWD1N1-M18
Electrical Data
Rated Volts/PH/Hz208-230/1/60
Performance Cooling
BTUH (High)34200
Indoor Airflow (SCFM)1250
Power Input (KW)3.20
SEER2/ EER2 - HI18/10.6
Performance Heating
(High Temp.) BTUH / COP (High)36000
Power Input (KW)3.00
HSPF2 (BTU / Watt-Hr.)8.1
Power Conn. - V/Ph/Hz208-230/1/60
Min. Brch. Cir. Ampacity28.7A
Max. Overcurrent Protection47.7A
Min. / Max. Volts173 / 269
Fuse Size - Max. / Recmd. (amps)45A
CompressorRotary
VoltsDC Inverter
R.L. Amps19
Outdoor Coil - TypeCu Finned Tube Heat
Rows/F.P.I.3+2/17*
Face Area (sq.ft.)14.11
Tube Size (in.)9/32
Circuitry TypeInterlaced
Refrigerant ControlEEV
Indoor Coil - TypeAl
Rows / F.P.I.4/17
Face Area (sq.ft.)3.96
Tube Size (in.)9/32
Circuitry Typeinterlaced
Drain Conn. Size (in.)3/4'' Female NPT
Outdoor Fan - TypePropeller
Dia. (in.)23-5/8"
Drive/No. SpeedsDirect / 10
CFM @0.0 in. w.g.3000
Motor - HP/R.P.M.1/3HP/200~880R.P.M.
VoltsDC310V
F.L. Amps/L.R. Amps2.1/-
Indoor Fan - TypeCentrifugal
Dia x Width (in.)11x10-3/4''
Drive/No. SpeedsDirect / 5
CFM @0.0 in. w.g.1350@0.58
Motor - HP/R.P.M.1/2HP/1050R.P.M.
Volts/Ph/Hz208-230/1/60
F.L. Amps/L.R. Amps3.8/-
Recmd. Face Area (L x W x D)16"—10"—1"
Refrigerant / Charge (lbs. - oz.)R410a/ 8-6
Dimensions Bare L x W x H (in.)50-11/16" x 35-1/16" x 46-13/16"
Weight-Net (lbs.)400
Weight-Gross (lbs.)420
