category:
Sensors
manual:
https://www.braeburnonline.com/sites/braeburn/files/products/manuals/1025NC%20WEB.pdf
manufacturer:
Braeburn
mpn:
1025NC
subcategory:
Thermostats
type:
Room Thermostats
weight:
.70 lbs.
Manual Product Description

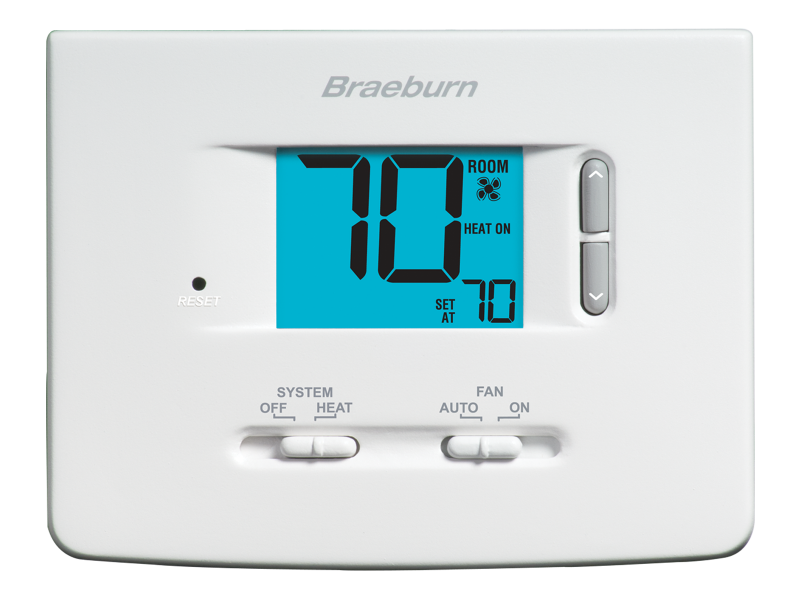

Braeburn - 1025NC Builder Non-Programmable Thermostat Heat Only
Features- Large 2 Sq. In. Display with Bright Blue Backlight
- Compatible with 2 or 3 Wire Hydronic Zone Systems
- Adjustable Temperature Limit
- Hardwire or Battery Powered
- Permanent Memory Retains Settings
- Low Battery Indication
- Front Access Reset Button
- F˚ / C˚ Switch
- Trilingual Packaging and Instruction Card with FREE Contractor Branding
Additional Information
Dimensions 3.62” x 4.72” x 1.38”
Electric Rating 24 Volt AC (18-30 Volt AC), 1 amp maximum load per terminal, 2 amp total maximum load (all terminals)
AC Power 18-30 Volt AC
DC Power 3.0 Volts DC, (2 “AA” Alkaline batteries included)
Compatibility Single stage conventional systems, 2 or 3 wire hydronic zone systems, 250mv - 750mv millivolt heat only systems
Control Range 45° to 90° F (7° to 32° C)
Display Range 40° to 99° F (5° to 37° C)
Accuracy +/- 1° F (+/- .5° C)
Temperature Differential .5°, 1°, or 2° F (0.2°, 0.5°, or 1.0° C)
Storage Temperature 14° to 140° F (-10° to 60° C)
Operating Humidity 5% to 95% Relative Humidity
Terminations R, G, W1, V3, C
