category:
Dampers
manual:
https://www.braeburnonline.com/sites/braeburn/files/products/manuals/Rectangular%20Spring%20Return%20Damper%20Manual.pdf
manufacturer:
Braeburn
mpn:
111010
subcategory:
Damper Actuators
Manual Product Overview

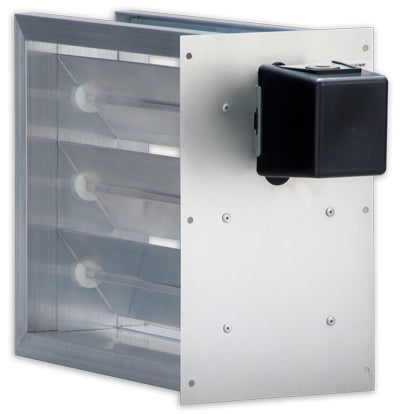

Braeburn rectangular zone dampers are the solution to power close/spring return applications. With economical 2 wire installation, this damper will control air distribution in zoned areas that use rectangular ducts. The dampers are made from precision formed aluminum to ensure quick installation. All dampers feature low friction bearings to provide long life and quiet operation.
Quick and Easy Installation Braeburn rectangular dampers come complete and ready for installation. All motors are mounted on the height dimension. For bottom mount applications, choose a damper like 111014 that will fit in a 10 inch tall duct mounted between 16 inch center floor joists
Features- Solid precision cut aluminum frame
- Parallel blade design for quieter air flow
- Easy slip-in design for quick installation
- Advanced design with very low leakage
- Long life quiet bushings
Additional Information
Power 24 VAC 8 VA
Actuator Synchronous AC clock drive, Backlash protection at end of travel, 30 second maximum close time
Connection Two wire leads
