category:
Sensors
manual:
https://www.braeburnonline.com/sites/braeburn/files/products/manuals/1020NC_1220NC%20manual_0.pdf
manufacturer:
Braeburn
mpn:
1220NC
subcategory:
Thermostats
type:
Room Thermostats
weight:
.70 lbs.
Manual Product Description

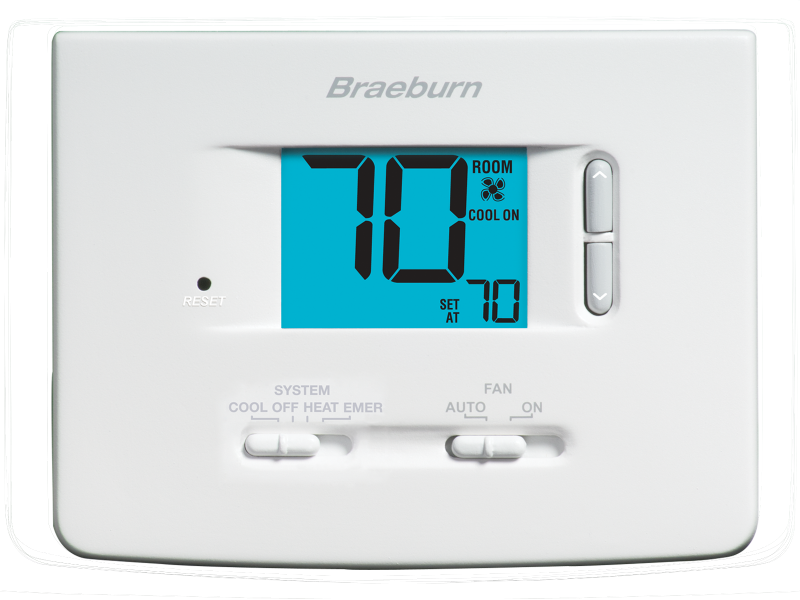

Braeburn - 1220NC Builder Non-Programmable Thermostat 2H / 1C
Features- Large 2 Sq. In. Display with Bright Blue Backlight
- Adjustable Temperature Limits
- Hardwire or Battery Powered
- Permanent Memory Retains Settings
- Adjustable Temperature Differential
- Compressor Short Cycle Protection
- Separate O B Terminals
- Auxiliary Heat Indicator
- Low Battery Indication
- ESD Guard Electronic Circuitry
- Front Access Reset Button
- F° / C° Switch
- Trilingual Packaging and Instruction Card with FREE Contractor Branding
Additional Information
Dimensions 3.62” x 4.72” x 1.38”
Electric Rating 24 Volt AC (18-30 Volt AC), 1 amp maximum load per terminal, 3 amp total maximum load (all terminals)
AC Power 18-30 Volt AC
DC Power 3.0 Volts DC, (2 “AA” Alkaline batteries included)
Compatibility Conventional systems up to two stages of heating and one stage of cooling; Heat pump systems with one compressor and up to one auxiliary stage; 250mv - 750mv millivolt heating systems
Control Range 45° to 90° F (7° to 32° C)
Display Range 40° to 99° F (5° to 37° C)
Accuracy +/- 1° F (+/- .5° C)
Temperature Differential 1st Stage - .5°, 1°, or 2° F (0.2°, 0.5°, or 1° C) 2nd Stage - 2°, 3°, 4°, 5°, or 6° F (1°, 1.5°, 2°, 2.5°, or 3° C)
Storage Temperature 14° to 140° F (-10° to 60° C)
Operating Humidity 5% to 95% Relative Humidity
Terminations Rh, Rc, O, B, Y1, E/W1, G, C, W2
