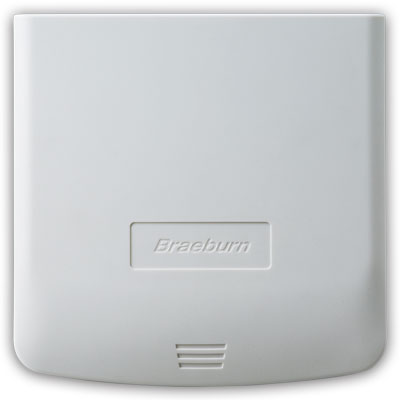

Braeburn 140202 Economy Series 2-Zone Control Panel 2H/1C

Product Description

Braeburn - 140202 Braeburn Zone Control Panels feature the latest in zone controls. Our economical two zone panels deliver maximum value for all two zone applications. Equipment and status can be determined at a glance with the monitoring LEDs built into the panel. User economy is improved with built in features such as last zone purge and economical opposite mode calling.

Quick and Easy Installation Braeburn zone panels are designed with the features that customers demand: easy installation, at-a-glance status, quick and reliable wiring terminals–all in an attractive six inch by six inch panel. Braeburn, your best source for zoning.

• Compact 6” x 6” foot print maintains system appearance
• Suitable for residential and light commercial applications
• Can be used with conventional four or five wire thermostats
• Quick connect terminals speed installation
• Compatible with electric, gas, oil and heat pump equipment
• Controls 2 heating and 1 cooling stage
• Emergency heat switch with remote terminals for total heat pump control
• Fan purge into last calling zone for improved energy efficiency
• The value choice in 2 zone panels
• Panel Power 4 VA maximum (3.5 VA typical) for panel
• System Power 4 VA (Zone Panel) + 1.0 VA per thermostat plus damper requirements, not to exceed 35 VA
• Protection Electronic self resetting current limiting
• Equipment Relay driven 2A at 24 VAC
• Zone Damper Compatible with power open/power close, spring Control open/power close and spring close/power open dampers
• Indicators (6) Power OK, status, equipment Rh, Rc, Damper 1 PO, PC; Damper 2 PO, PC
• Switches Non HP/HP, dual fuel no/yes, reversing valve B active/O active, fan control plenum/system, opposite mode call timer 20/15, 2nd stage lockout none/active, priority all/zone 1
• Terminals Rh, Rc, Y1, G, W1/E/W3, W2/O-B, C, E-Heat; panel power (2) and R, Y, G, W, C, PO, C, PC for each zone
