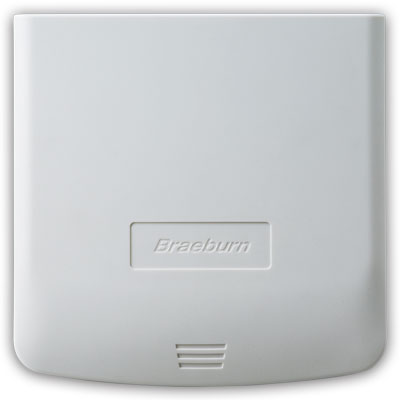

Braeburn 140303 Economy Series 3-Zone Control Panel 3H/2C (with Supply Air Sensor)

Product Description

Braeburn - 140303 Braeburn Zone Control Panels feature the latest in zone controls. Equipment and status are determined at a glance with the monitoring LEDs built into the panel. A supply air temperature sensor is included with each panel to provide constant control.

Quick and Easy Installation Braeburn zone panels are designed with the features customers demand: easy installation, at-a-glance status, quick and reliable wiring terminals–all in an attractive compact panel. Braeburn, your best source for zoning.

• Sleek, low profile design complements any system
• Suitable for residential and light commercial applications
• Can be used with conventional four or five wire thermostats
• LEDs indicate panel functionality
• Quick connect terminals speed installation
• Compatible with electric, gas, oil and heat pump equipment
• Controls 3 heating and 2 cooling stages
• Controls 2 or 3 zones
• Emergency heat switch with remote terminals for total heat pump control
• Fan purge into last calling zone for improved energy efficiency.
• Panel Power 4 VA maximum (3.5 VA typical) for panel
• System Power 4 VA (Zone Panel) + 1.0 VA per thermostat + damper requirements, not to exceed 35 VA
• Protection Electronic self resetting current limiting
• Equipment Relay driven 2A at 24 VAC
• Zone Damper Compatible with power open/power close, spring open/
• Control power close and spring close/power open dampers
• Indicators (28) Power OK, status, equipment Rh, Rc, Y1, Y2, G, G2, W1/E/W3, W2/O-B; emergency heat, thermostats 3X R, Y, G, W, dampers; closed or open
• Switches Non HP/HP, dual fuel no/yes, reversing valve B active/O active, fan control plenum/system, opposite mode call timer 20/15, 2nd stage lockout none/active, priority all/zone 1, second stage for 2 zones/2 stages.
• Terminals Rh, Rc, Y1, Y2, G, G2, W1/E/W3, W2/O-B, C, E-Heat, SA1, SA2 panel power (2) and R, Y, G, W, C, PO, C, PC for each zone
• Settings Large display for high temperature and low temperature cut-out, purge status, supply temperature
