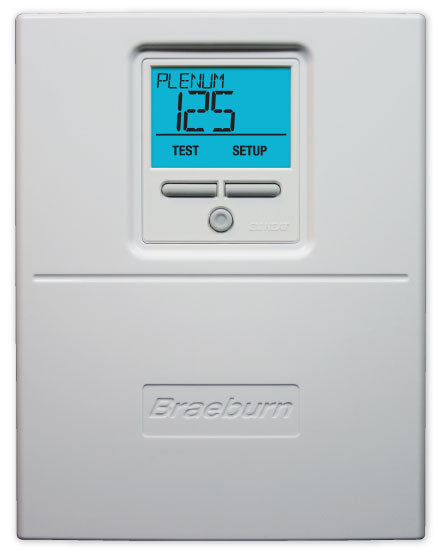

Braeburn 140404 Premier Series 4-Zone Expandable Control Panel 4H/2C (with Supply Air Sensor)

Product Overview

Expandable Zone Control Panels Featuring a compact 8”W x 10”H housing and a large 5.5 sq. in. backlit display for set-up, checkout and operation.

Quick and Easy Installation Push-in terminal blocks lock in wires without a screwdriver. LED’s indicate equipment and zone calls while the display keeps you up to date with panel operation. Plus, wire guides and a small footprint allow for a quick and professional installation.

• Controls up to 4 heating and 2 cooling stages
• Expandable up to 32 zones
• Compatible with electric, gas, oil and heat pump equipment–including dual fuel
• Can be used with virtually all low-voltage thermostats and dampers from other manufacturers
• Compatible with BlueLink Wireless Technology
• Large 5.5 sq. in. display shows system status
• Dual fuel operation with Braeburn outdoor sensor
• LED’s show all calls at a glance
• Push-in terminals for easy wiring– no screwdriver needed
• Flexible staging controlled by panel or thermostat
• Push button set-up without dip switches
• Plenum sensor included
