category:
Sensors
manual:
https://www.braeburnonline.com/sites/braeburn/files/products/manuals/2020NC%202220NC%20Manual_1.pdf
manufacturer:
Braeburn
mpn:
2020NC
subcategory:
Thermostats
type:
Room Thermostats
weight:
.70 lbs.
Manual Product Description

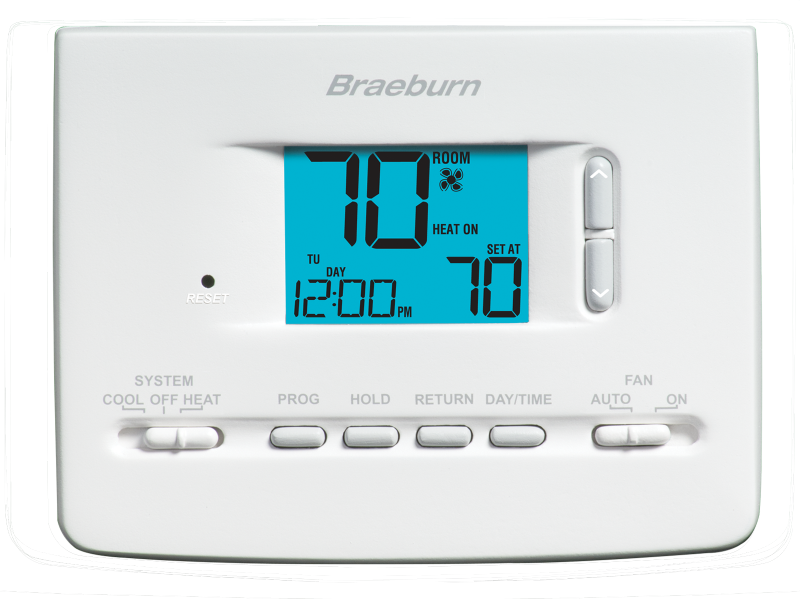

Braeburn - 2020NC Builder 5-2 Day Programmable Thermostat 1H / 1C
Features- 7 Day, 5-2 Day or Non-Programmable
- Large 2 Sq. In. Display with Bright Blue Backlight
- Adjustable Temperature Limits
- Hardwire or Battery Powered
- Permanent Memory Retains Settings
- Filter Check Monitor
- Adjustable Temperature Differential
- Adaptive Recovery Mode (ARM )
- Meets Energy Aware® Guidelines*
- ESD Guard Electronic Circuitry
- Compressor Short Cycle Protection
- Temporary Program Override
- Programmable Extended Hold Mode
- Front Access Reset Button
- F˚ / C˚ Switch
- Trilingual Packaging and Instruction Card with FREE Contractor Branding
Additional Information
Dimensions 3.62” x 4.72” x 1.38”
Electric Rating 24 Volt AC (18-30 Volt AC), 1 amp maximum load per terminal, 3 amp total maximum load (all terminals)
AC Power 18-30 Volt AC
DC Power 3.0 Volts DC, (2 “AA” Alkaline batteries included)
Compatibility Single stage gas, oil or electric systems, Single stage heat pump systems, 250mv – 750mv millivolt heating systems
Control Range 45° to 90° F (7° to 32° C)
Display Range 40° to 99° F (5° to 37° C)
Accuracy +/- 1° F (+/- .5° C)
Temperature Differential .5°, 1°, or 2° F (0.2°, 0.5°, or 1° C)
Storage Temperature 14° to 140° F (-10° to 60° C)
Operating Humidity 5% to 95% Relative Humidity
Terminations Rc, Rh, O, B, Y1, W1, G, C
