category:
Sensors
install_guide:
["https://www.braeburnonline.com/sites/braeburn/files/products/manuals/2030%202230%20Installer.pdf"]
manual:
https://www.braeburnonline.com/sites/braeburn/files/products/manuals/2030%202230%20User%20Manual%20-02.pdf
manufacturer:
Braeburn
mpn:
2030
subcategory:
Thermostats
type:
Room Thermostatss
weight:
.95 lbs.
Install Guide Product Description

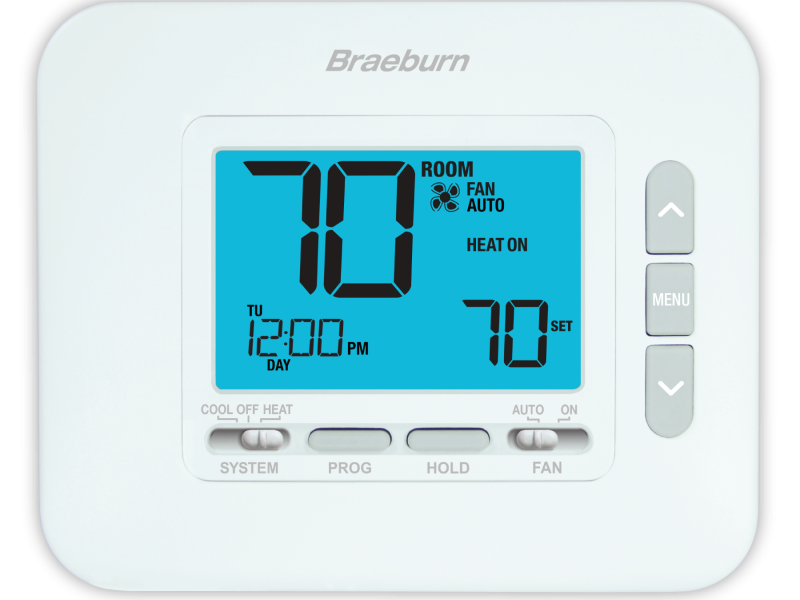

Braeburn - 2030 Universal 7, 5-2 Day or Non-Programmable, 1H / 1C W 4.4 Sq In Display
Features- 7 Day, 5-2 Day or Non-Programmable
- Large 4.4 Sq. In. Display
- Bright Blue Backlight
- SmartLimit Temperature Limits
- SpeedSet Programming Mode
- Hardwire or Battery Powered
- Installer Lock Mode
- Filter Check Monitor
- Optional Celsius Display
- Separate O and B Terminals
- Adaptive Recovery Mode (ARM )
- Adjustable Temperature Differential
- Compatible with 2-Wire Hydronic Zone Systems
Additional Information
Dimensions 4.25” x 5.12” x 1”
Electric Rating 24 Volt AC (18-30 Volt AC), 1 amp maximum load per terminal, 3 amp total maximum load (all terminals)
AC Power 18-30 Volt AC
DC Power 3.0 Volts DC, (2 “AA” Alkaline batteries included)
Compatibility Single stage gas, oil, electric or hydronic systems Single stage heat pumps 250mv – 750mv millivolt heating systems
Control Range 45° to 90° F (7° to 32° C)
Display Range 35° to 99° F (1.5° to 37° C)
Accuracy +/- 1° F (+/- .5° C)
Temperature Differential 0.5°, 1°, or 2° F (0.2°, 0.5°, or 1° C)
Storage Temperature 14° to 140° F (-10° to 60° C)
Operating Humidity 5% to 95% Relative Humidity
Terminations Rc, Rh, O, B, Y1, W1, G, C
