category:
Sensors
install_guide:
["https://www.braeburnonline.com/sites/braeburn/files/products/manuals/2030%202230%20Installer.pdf"]
manual:
https://www.braeburnonline.com/sites/braeburn/files/products/manuals/2030%202230%20User%20Manual%20-02_0.pdf
manufacturer:
Braeburn
mpn:
2230
subcategory:
Thermostats
type:
Room Thermostats
weight:
.95 lbs.
Install Guide Product Description

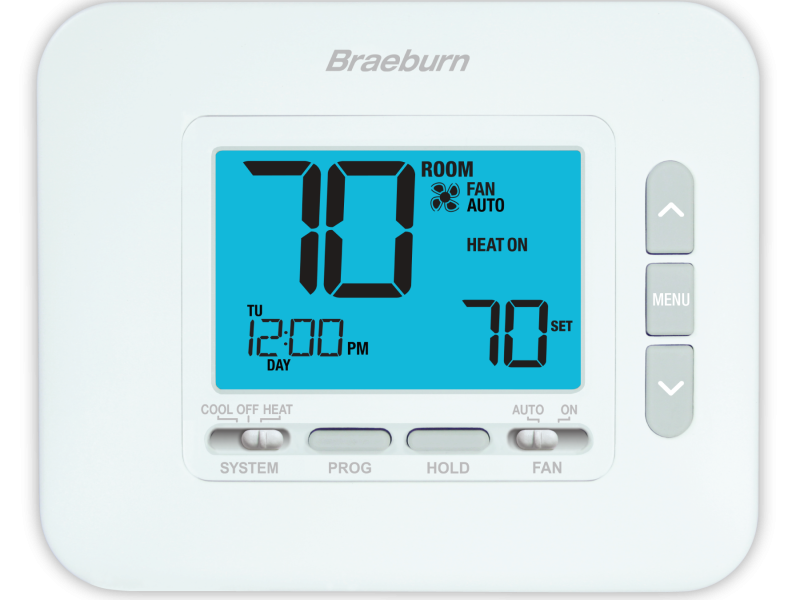

Braeburn - 2230 Universal 7, 5-2 Day or Non-Programmable, 2H / 1C W 4.4 Sq In Display
Features- 7 Day, 5-2 Day or Non-Programmable
- Large 4.4 Sq. In. Display
- Bright Blue Backlight
- SmartLimit Temperature Limits
- SpeedSet Programming Mode
- Hardwire or Battery Powered
- Installer Lock Mode
- Heat Pump Check Terminal
- Adjustable Temperature Differential
- Filter Check Monitor
- Optional Celsius Display
- Separate O and B Terminals
- Adaptive Recovery Mode (ARM )
- Compatible with 2-Wire Hydronic Zone Systems
Additional Information
Dimensions 4.25” x 5.12” x 1”
Electric Rating 24 Volt AC (18-30 Volt AC), 1 amp maximum load per terminal, 4 amp total maximum load (all terminals)
AC Power 18-30 Volt AC
DC Power 3.0 Volts DC, (2 “AA” Alkaline batteries included)
Compatibility Single stage gas, oil, electric or hydronic systems Single stage heat pumps with or without auxiliary heat 250mv – 750mv millivolt heating systems
Control Range 45° to 90° F (7° to 32° C)
Display Range 35° to 99° F (1.5° to 37° C)
Accuracy +/- 1° F (+/- .5° C)
Temperature Differential 0.5°, 1°, or 2° F (0.2°, 0.5°, or 1° C)
Storage Temperature 14° to 140° F (-10° to 60° C)
Operating Humidity 5% to 95% Relative Humidity
Terminations Rc, Rh, O, B, Y1, W1/E, W2, G, C, L
