Manual Product Description

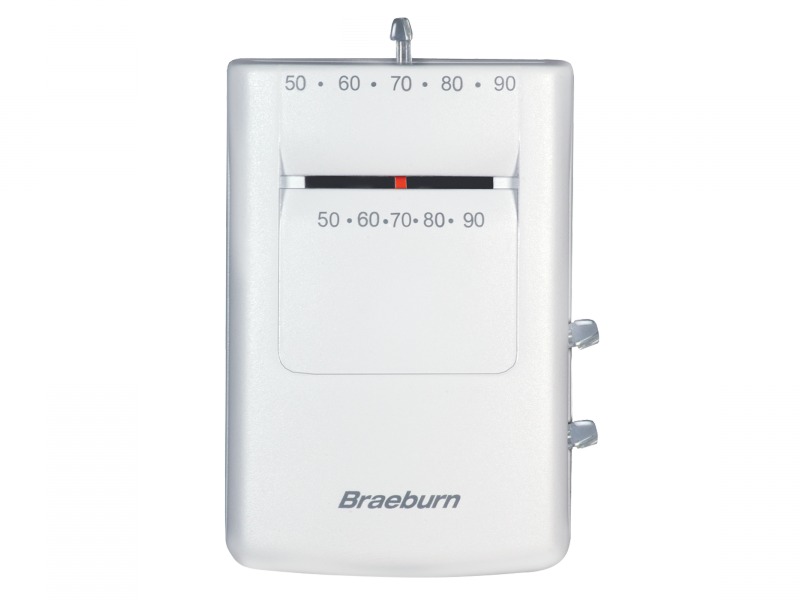

Braeburn - 500 Mechanical Megaswitch 1H / 1C Gas/Elec
Features- Dependable Switch Performance
- Environmentally Safe – Mercury-Free
- Integrated Sub-Base and Front Mounted Wiring Terminals Helps Make Installation Easy
- Separate O B Terminals (Model 500 Only)
- Plated Terminals Reduce Corrosion
- No Leveling Required During Installation
- Heavy Duty Heat Anticipator
Additional Information
Dimensions 4.60” x 3.13” x 1.25”
Electric Rating 24 Volt AC (18-30 Volt AC)
Heat Anticipation 0.15 to 1.2 amps
Compatibility Model 500 – Single stage gas, oil or electric
Control Range 50° to 90° F (10° to 32° C)
Storage Temperature 14° to 140° F (-10° to 60° C)
Operating Humidity 5% to 95% Relative Humidity
System Lever Model 500 – COOL/OFF/HEAT
Fan Control Lever Model 500 – AUTO/ON
Terminations Model 500 – O, G, Rc, Rh, B, Y, W
