category:
Sensors
install_guide:
["https://www.braeburnonline.com/sites/braeburn/files/products/manuals/7205%20Installer%20Guide.pdf"]
manual:
https://www.braeburnonline.com/sites/braeburn/files/products/manuals/7205%20User%20Manual_0.pdf
manufacturer:
Braeburn
mpn:
7205
subcategory:
Thermostats
weight:
1 lbs.
Install Guide Product Overview

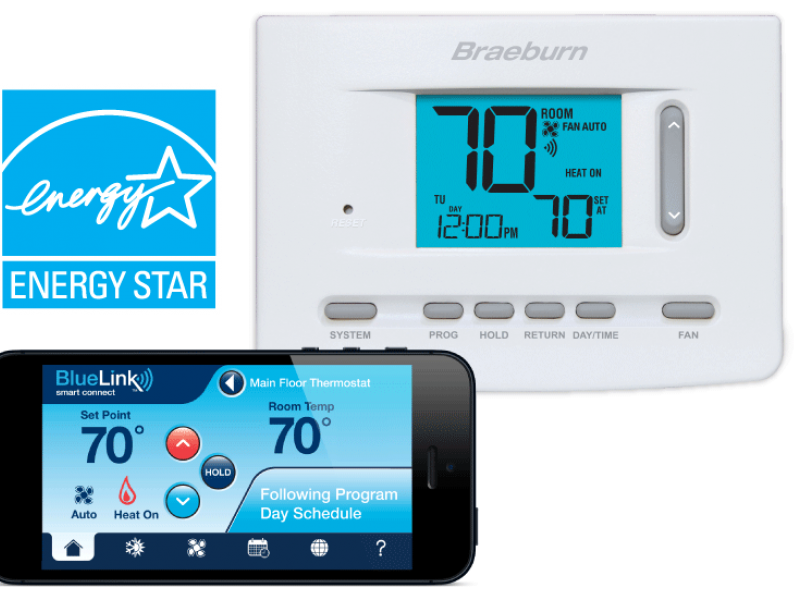

Universal Smart Wi-Fi Programmable Thermostat 3H / 2C
Features- 7 Day, 5-2 Day or Non-Programmable
- Large 3 sq. in. Backlit Display
- Bright Blue Backlight
- Auto or Manual Changeover
- User and Installer Lock Modes
- SmartLimit® Temperature Limits
- Auxiliary Heat Fossil Fuel Option
- Hardwire or Battery Powered
- Circulating Fan Mode
- Wi-Fi works without common (C) wire on most systems; requires common on Heat Pump, Heat Only or Cool Only Systems
- Compatible with Virtually All Smartphones, Tablets or PC’s
- Multi-Color Program Groups Simplify Scheduling
- Flexible Vacation and Holiday Scheduling
- Text and E-Mail Service and Temperature Alerts
- BlueLink QuickCopy Allows User to Duplicate Program and Configuration to Other Thermostats
- QuickEdit Makes Schedule Changes Easy
- BlueLink SmartData Energy Report Capability
- Monitor and Control Multiple Thermostats
- Easy Access Dealer Information
- Optional Geofencing for Increased Energy Savings
Additional Information
Dimensions 3.70” x 5.2” x 1.38”
Electric Rating 24 Volt AC (18-30 Volt AC), 1 amp maximum load per terminal, 5 amp total maximum load (all terminals)
AC Power 18-30 Volt AC
DC Power 3.0 Volts DC (2 “AA” Alkaline batteries included), To Use Wi-Fi
Compatibility Heat pump systems up to 3 heat/2 cool, Conventional systems up to 2 heat/2 cool
Wi-Fi Communication 802.11
Control Range 45° to 90° F (7° to 32° C)
Display Range 40° to 99° F (5° to 37° C)
Accuracy +/- 1° F (+/- .5° C)
Terminations Rh, Rc, C, W2, W1/E/W3, O/B, G, Y2, Y1, K
